NOMADIC
COOLING.
Purpose-built thermal engineering for off-grid mobile independence. We eliminate the need for shore power through high-efficiency DC architecture.

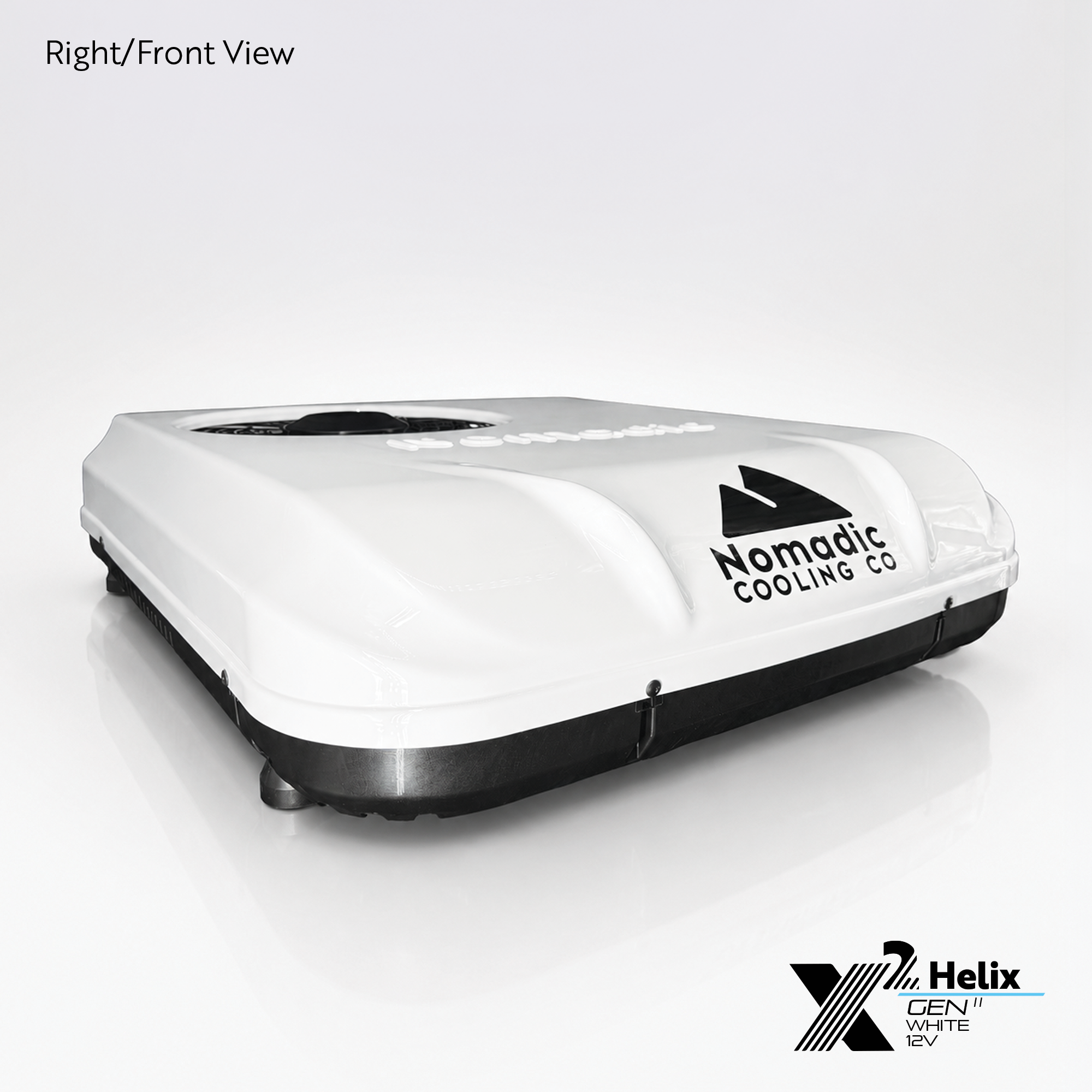

X2: Compact 48V|24V|12V Off-Grid DC Rooftop Air Conditioner For Camper Vans & Smaller RV
S1: Flexible 12V Off-Grid DC Split System Air Conditioner For Trucks & Mobile Living
Helix A/C Fit Guide
Answer a few quick questions to get a best-fit A/C suggestion for your build based on install type, cabin size, climate, power priorities, and voltage. This is a planning tool designed to help you compare options faster.
Answer a few quick questions
6-step fit recommendation wizardImportant notice
- This Fit Guide provides a starting-point suggestion based on typical builds. It is not an engineering analysis, a performance guarantee, or a promise of results.
- Actual cooling performance depends on ambient temperature/humidity, solar load, insulation quality, window coverage, air leakage, interior layout/volume, internal heat sources, and how often doors open.
- Power system needs vary with duty cycle, setpoint, install quality, airflow/ducting, battery capacity, and charging sources (alternator/shore/solar).
- Always verify system compatibility, required openings, dimensions, and installation constraints before purchasing.
HELIX SERIES
A/C COMPARISON
Match the right unit to your build based on install type, performance, and electrical demand, then open any product for full specs.
Rated cooling (BTU/h):
12V: 12893 | 48V: 12380
Rated cooling (BTU/h):
12V: 9586 | 48V: 9974
Rated cooling (BTU/h):
12V: 10936 | 48V: 11971
Rated power (W):
12V: 1297W | 48V: 1512W
Rated power (W):
12V: 947W | 48V: 986W
Rated power (W):
12V: 974W | 48V: 1038W
Current draw (ECO):
12V: 61A | 48V: 11A
Current draw (ECO):
12V: 38A | 48V: 9A
Current draw (ECO):
12V: 38A | 48V: 9A
Current draw (MAX):
12V: 89A | 48V: 23A
Current draw (MAX):
12V: 64A | 48V: 19A
Current draw (MAX):
12V: 68A | 48V: 19A
Noise:
≤ 81 dba
Noise:
≤ 81 dba
Noise:
≤ 54.3 dba
Weight:
52.91lbs
Weight:
36.38lbs
Weight:
74.93lbs
Refrigerant:
R1234yf @ 580g + 20g
Refrigerant:
R1234yf @ 400g + 30g
Refrigerant:
R134a/R1234yf @ 550g +/-30g
Warranty:
One (1) Year
Warranty:
One (1) Year
Warranty:
One (1) Year
System type:
Rooftop (14" x 14" opening)
System type:
Rooftop (14" x 14" opening)
System type:
Split System
Best for:
Maximum rooftop cooling output + fastest pull-down for larger vans/RVs and high-heat conditions.
Best for:
Balanced rooftop cooling for vans/RVs where weight and efficiency matter.
Best for:
Sleeper cabs / thru-wall installs where interior noise is a priority (no roof cutout).
Voltage options:
12V / 48V
Voltage options:
12V / 48V
Voltage options:
12V / 48V
Required opening:
14" × 14" roof opening
Required opening:
14" × 14" roof opening
Required opening:
2.25" pass-through hole
Dimensions:
31.5" L × 30.9" W × 7.36" H
Dimensions:
28" L × 22.5" W × 6.9" H
Dimensions:
24.26" W × 14.19" H × 8.36" D (main unit) | 8.36" W × 14.19" H × 7.13" D (interior unit)
CABIN SIZE FIT:
Medium–Large vans/RVs (high-heat / high load use cases)
CABIN SIZE:
Small–Medium vans/RVs (balanced efficiency + output)
CABIN SIZE:
Sleeper cabs + thru-wall installs (small–medium cabins)
RECOMMENDED BATTERY BANK:
Large
RECOMMENDED BATTERY BANK:
Medium
RECOMMENDED BATTERY BANK:
Medium
Tell us about your build — we’ll point you to the right unit.
Get a Recommendation
Share a few details below, and our team will reply with a recommended model and the key specs to verify (install type, openings, voltage, dimensions, and power considerations).
