X3 Helix is the next step in our X-Series—built for people done with heat soak, sticky humidity, and “apps” that stop at Bluetooth range. An efficient PWM compressor modulates instead of hard cycling, so your 12V rooftop air conditioner (or 48V) holds target temperature with less battery stress. Helix adds scenes, schedules, and true remote access on phone, tablet, and watch—pre-cool before you return, keep pets safe while you’re out, and see live status anywhere.

• Steady comfort: smooth modulation, less overshoot.
• Real remote control: set and adjust from anywhere (not range-bound).
• Cleaner interior: flush powder-coated metal faceplate (no bulky plastic box).
• Humidity handled: High Humidity mode for van/RV cabins.
• Built for miles: corrosion-resistant stainless hardware (our long-standing standard).
• US-based support: Elkhart, Indiana—level-one techs and engineers.
• Options: 12V or 48V, Black or White.
• Coach integration: RV-C ready via the optional Helix AC Controller for multiplex coach panels.



Bottom line: if you’ve outgrown on/off cycling and short-range apps, X3 Helix delivers steady comfort, real control, and road-ready construction.

X3 Helix is our next-generation DC rooftop platform in the X-Series lineage—engineered for battery-friendly, steady cooling and built to solve real road issues: heat soak, coastal humidity, and control that stops at the door. It pairs precise PWM compressor control with the Helix platform for scenes, schedules, and true remote access on phone, tablet, and watch.

For builders and multiplex coaches, X3 Helix can publish status and accept commands on RV-C when paired with the optional Helix AC Controller, giving you unified, coach-wide climate control.

What’s new in X3 Helix

• Improved control logic: purpose-built algorithms that fully leverage PWM—smooth ramps, minimal overshoot, steady hold at lower compressor RPMs.
• Helix ecosystem integration: native scenes/schedules and remote access across phone, tablet, and watch (beyond Bluetooth range).
• Sealed back plate: shields control electronics from dust and debris for added durability.
• Redesigned internal plenum / air separator: cleaner airflow paths and more consistent cabin performance.
• Automotive-grade, water-resistant connectors: robust, service-minded connections—no messy sealants.
• R1234yf refrigerant: low-GWP, A2L (low-flammability) class with conservative charge limits—meets modern safety standards and avoids the high-flammability hydrocarbons used in some budget systems.

Built on proven X-Series fundamentals

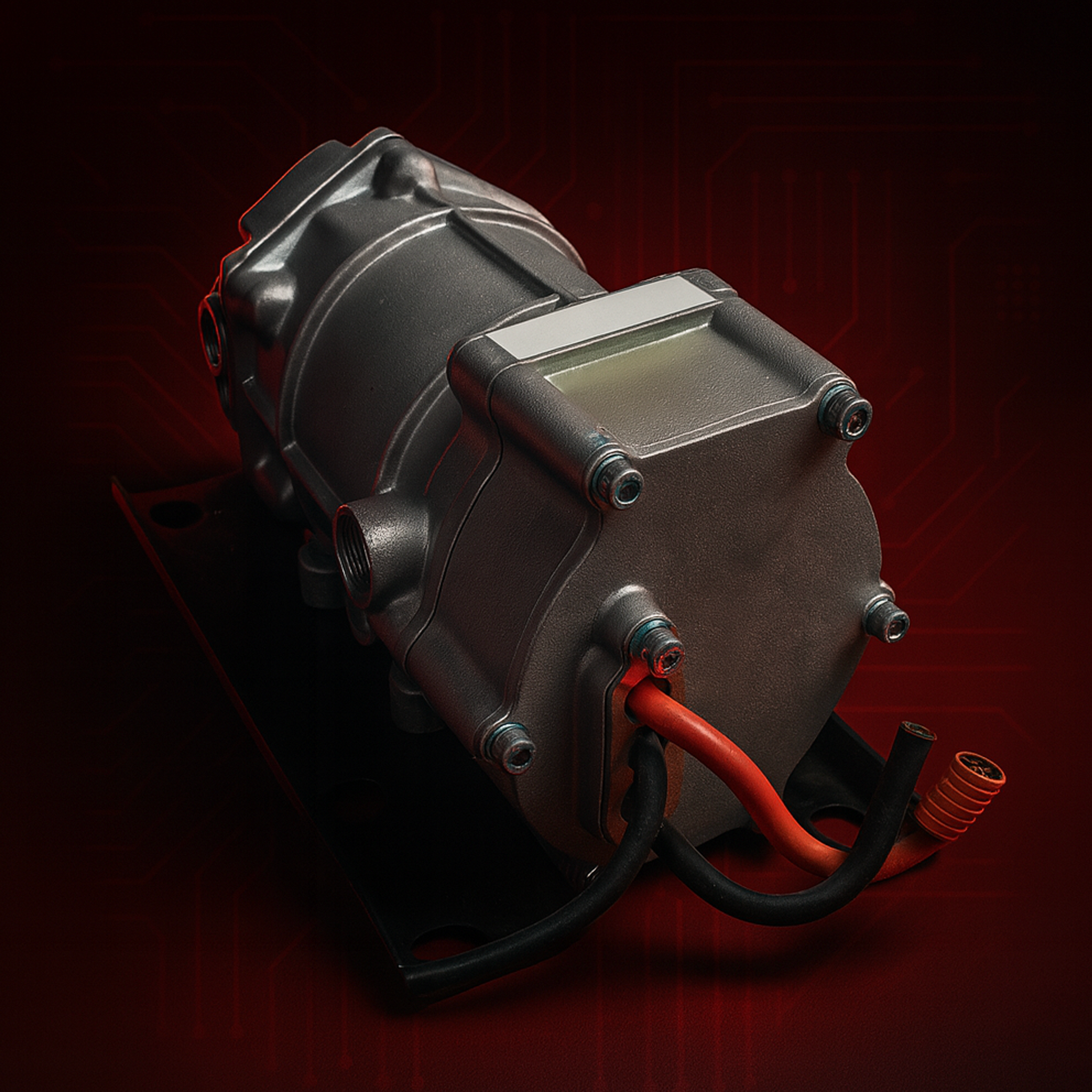

• PWM compressor control (X-Series core): precise modulation that maintains comfort with less battery stress.

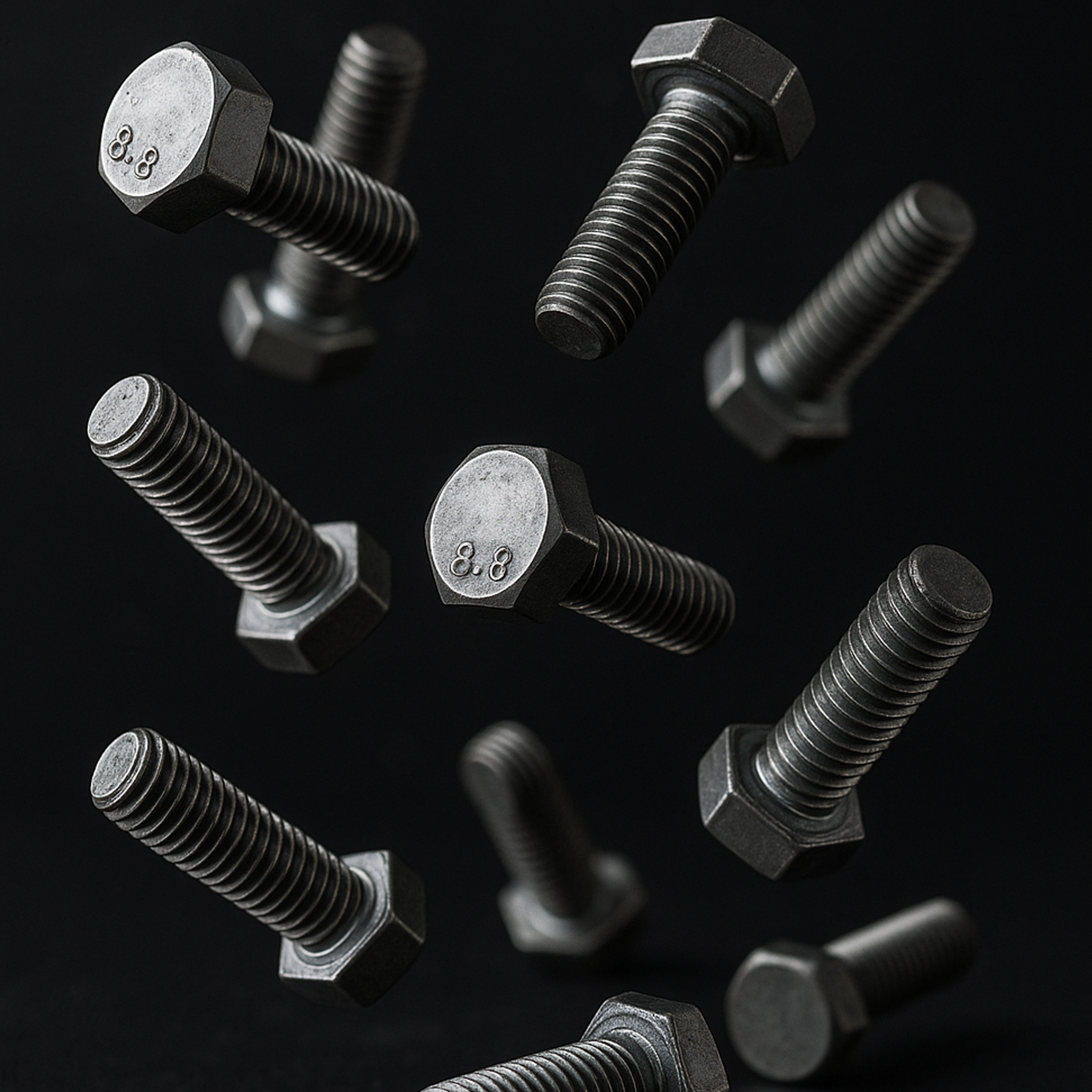

• Stainless hardware: our long-standing standard for coast-to-coast corrosion resistance.

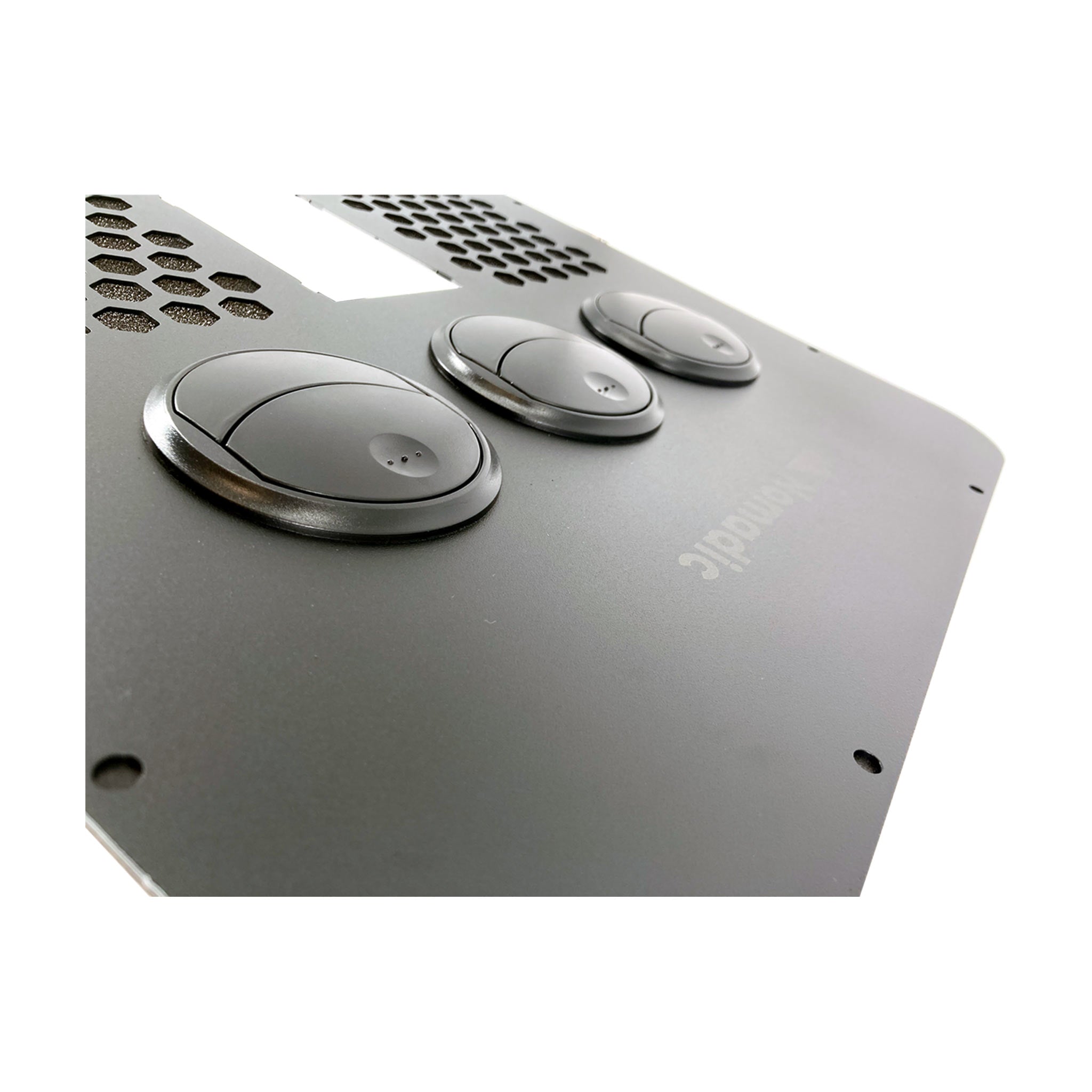

• Flush, powder-coated metal interior plate: premium look without a bulky plastic bezel intruding into the cabin.
• Spring-bushing compressor mounts: vibration-damping support for a quieter, smoother feel.
• Low-profile interior presence: space-efficient design that preserves headroom.

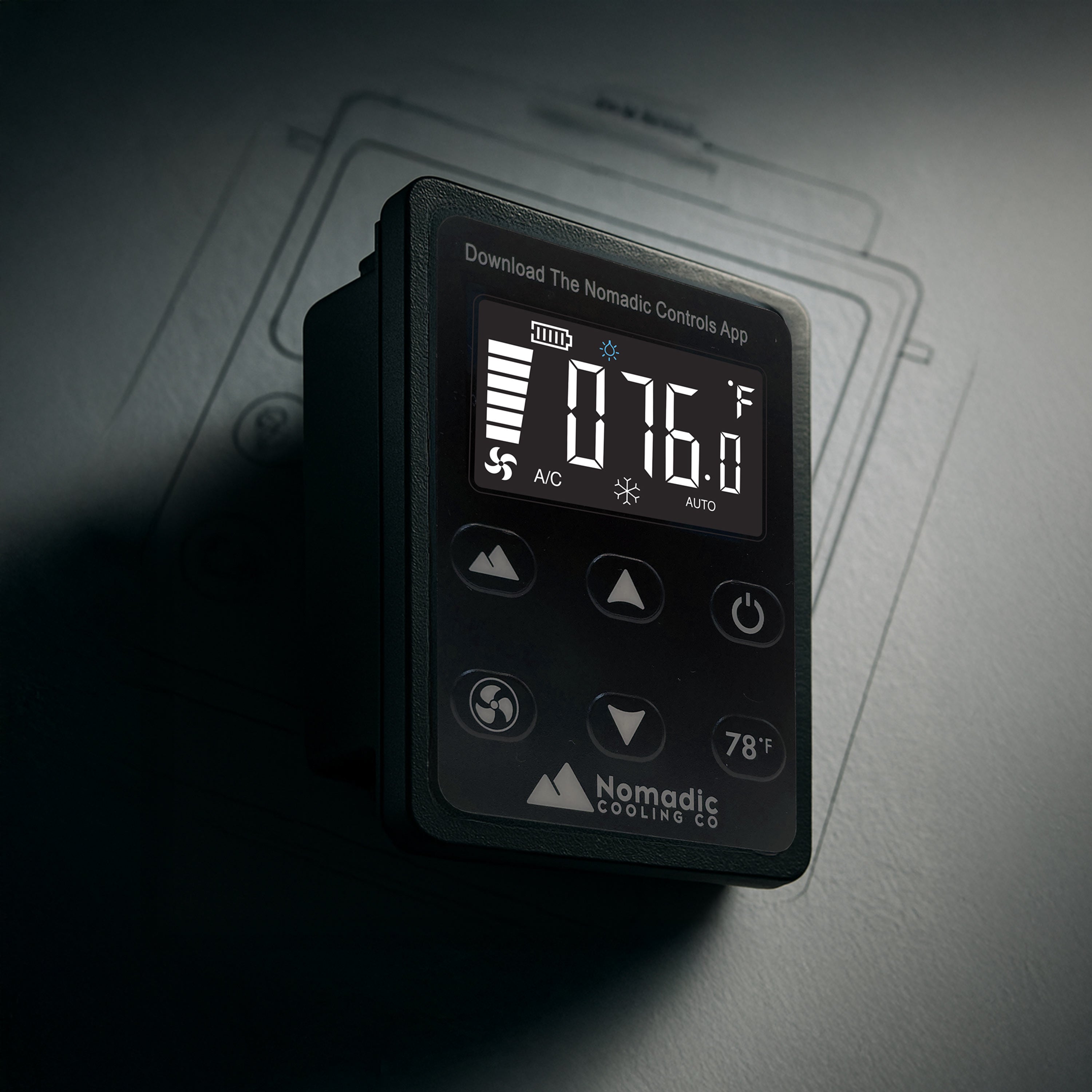

• Bright, high-contrast LCD & tactile buttons: clear readout and glove-friendly control at the unit.
• Fit & install: industry-standard 14×14 opening with a familiar X-Series install flow.
• Premium crossbars & logical fuse access: secure mounting and sensible service points.

Supported by a US-based team in Elkhart, Indiana. Hardware by Nomadic Cooling, control by Nomadic Controls (Helix)—all under Nomadic Innovations. Whether you search for Nomadic Cooling AC or Nomadic Innovations AC, you’re in the right place—and the same ecosystem.

Because it solves the problems that actually matter: unstable temps, short-range control, sticky air, and gear that ages fast. X3 Helix combines PWM-driven stability with true remote access and road-tough construction, so comfort is predictable and control is always in reach.

Comfort you can set and forget

• Holds the set point: improved control logic + PWM smooth the ramps and reduce overshoot.
• Night-friendly quiet: PWM maintains temp at lower compressor RPMs; create a “Quiet Night” scene in Helix.

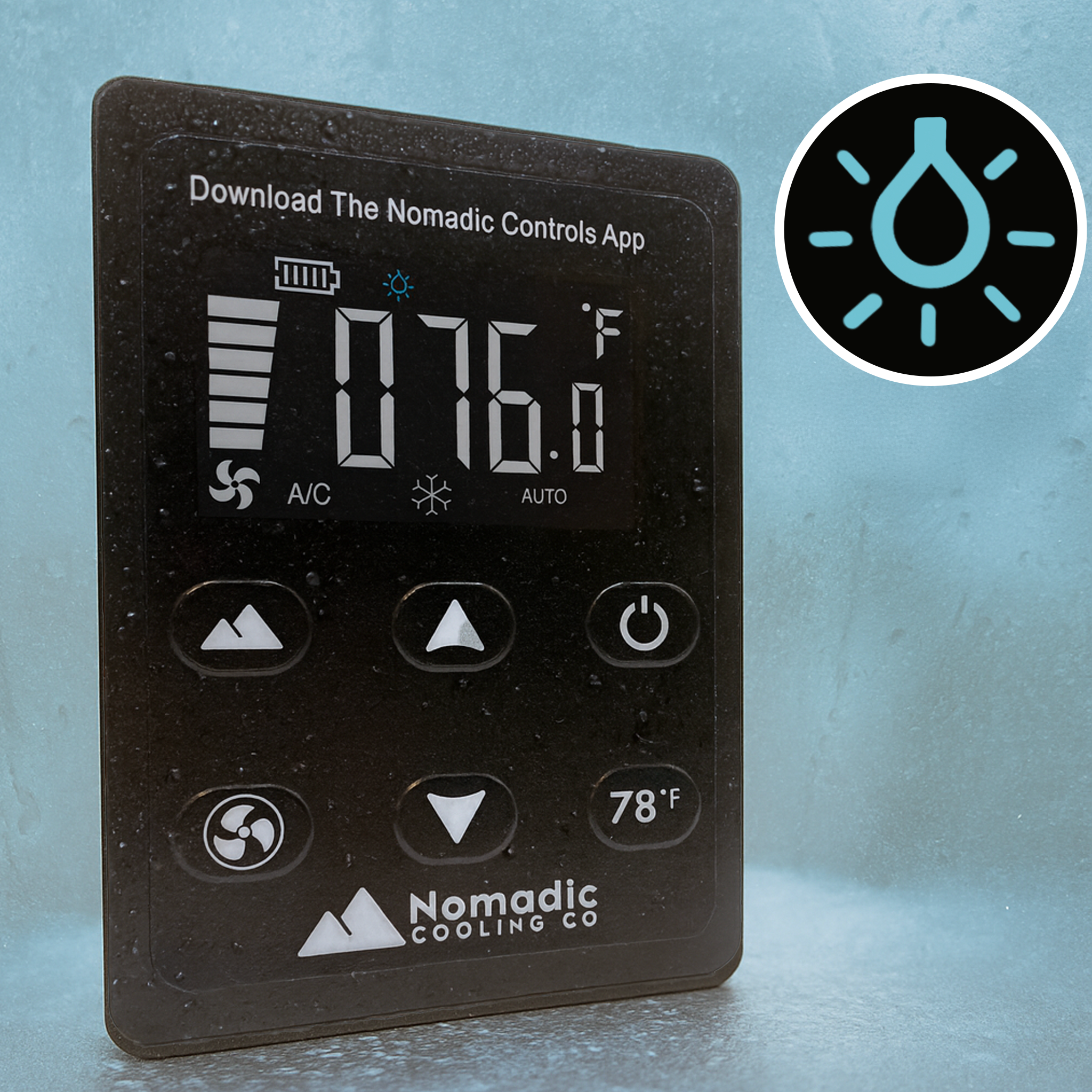

• Moisture control: High Humidity mode clears the cabin fast after showers or in coastal weather.

Control that works wherever you are

• Scenes & schedules: set routines that match how you travel.

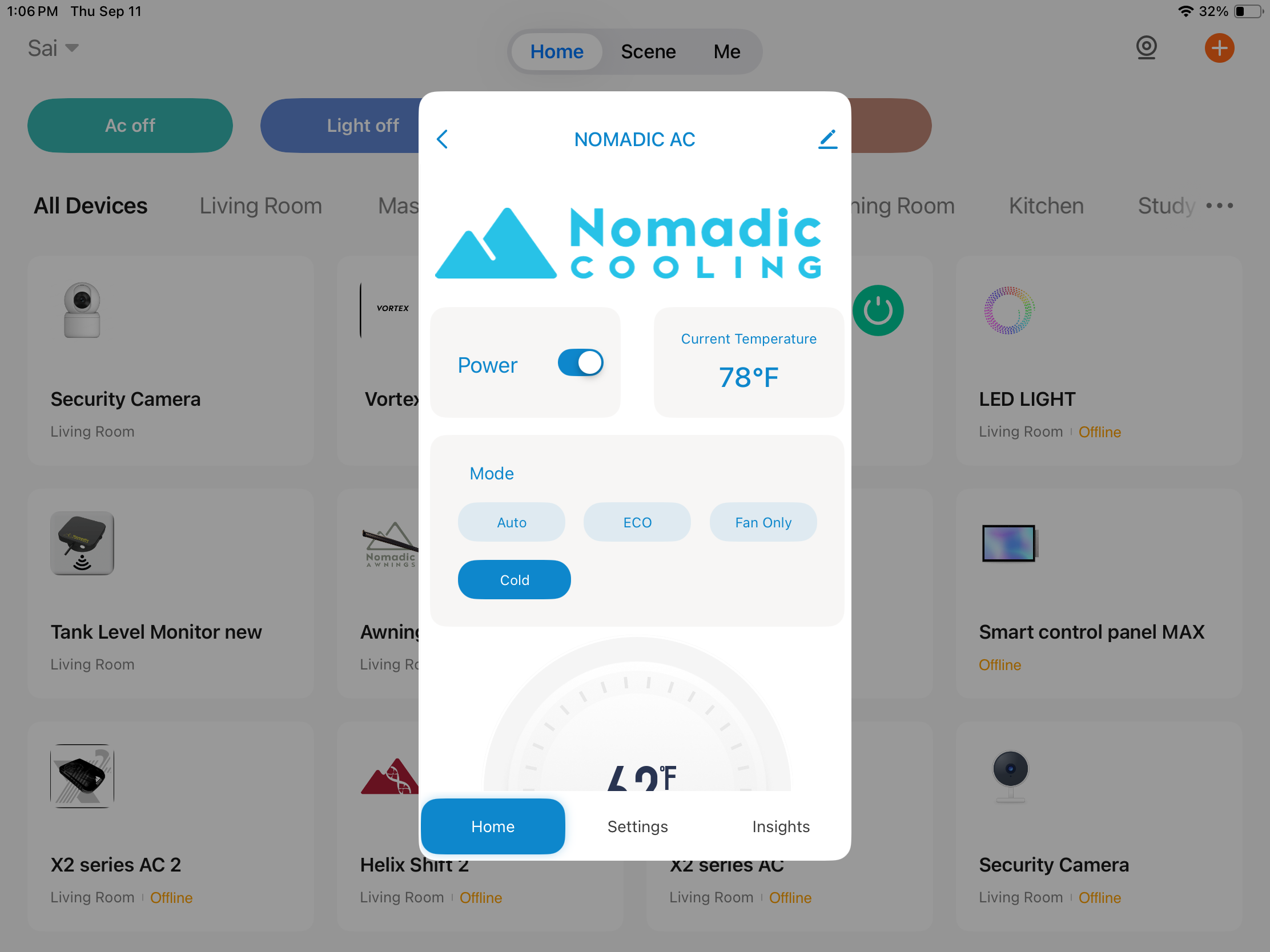

• Remote access: adjust and monitor from phone, tablet, or watch—pre-cool before you arrive; check in on pets from the trail.
• Coach integration: multiplex-friendly RV-C control via the optional Helix AC Controller.


Built for the miles ahead

• Road-ready construction: flush metal interior plate, corrosion-resistant hardware, protected electronics.
• Service-minded: automotive-grade, water-resistant connectors and sensible access points.
• Aligned with modern standards: R1234yf with thoughtful charge limits and components chosen for long-term support.

Fit, finish, and support

• Standard 14×14 opening: install flow familiar to X-Series owners and builders.
• Variants: 12V or 48V; Black or White.
• US-based help: real support from Elkhart, Indiana.

Choose X3 Helix if you want steady comfort, remote climate control that actually reaches you, and components chosen for longevity—not a bargain-bin quick-sale unit you’ll be replacing next season.

Specs matter—but comfort is what you feel. Here’s what owners report the first time they run X3 Helix.

• No temperature roller-coaster: improved control logic and PWM modulation glide to your set point and hold it.
• Pre-cool actually works: scenes/schedules in Helix let you return to a rig that’s already comfortable.
• Night-friendly quiet: PWM holds temp at lower compressor RPMs for a softer sound profile; set a “Quiet Night” scene in Helix to minimize fan and compressor activity while you sleep.
• Cabin looks cleaner: the flush, powder-coated metal plate replaces the bulky plastic box.
• Sticky air fades fast: High Humidity mode pulls moisture quickly after showers or coastal drives.
• Fewer “is it okay?” worries: check status on phone, tablet, or watch; add Helix Eye for a visual glance at pets and temps.
• Built to live outside: stainless hardware, sealed back plate, and automotive-grade water-resistant connectors inspire confidence.

Result: steadier comfort, quieter nights, simpler routines, and control that follows you—without standing next to the unit.

Until verification is complete, the figures below are provisional estimates derived from our X-Series comparison data; final certified numbers will be posted after testing.

Model & Fit

• Model: X3 Helix
• Voltages: 12V DC or 48V DC
• Type: DC rooftop air conditioner
• Roof opening: industry-standard 14×14 in
• Finishes: Black or White

Estimated Performance (averages across 70–100+°F)

Why these numbers matter: We publish averages across 70–100+°F, not a single “best-case” spike. That makes comparisons fair and closer to real use. Final certified figures will replace these estimates after verification.

• Full AC — 12V: ~12,893 BTU/hr • COP ~2.9 • ~1,297.2 W • ~88.6 A
• Full AC — 48V: ~11,671 BTU/hr • COP ~2.47 • ~1,386 W • ~25.21 A
• ECO — 12V: ~10,503 BTU/hr • COP ~3.4 • ~899.4 W • ~61.2 A
• ECO — 48V: ~5,216 BTU/hr • COP ~2.92 • ~523 W • ~10.26 A

Components & Control

• Compressor control: PWM modulation with improved control logic (smooth ramps, minimal overshoot, steady hold)
• Humidity mode: High Humidity (fast moisture pull-down)
• Refrigerant: R1234yf (low-GWP, A2L) — final charge posted after verification
• RV-C integration: supported via the optional Helix AC Controller — publishes AC status and accepts basic commands for multiplex/coach UIs; designed for standard RV-C networks (proper bus termination and wiring)
• Ecosystem control: Helix scenes, schedules, and remote access on phone, tablet, and watch
• Electronics protection: sealed back plate; automotive-grade, water-resistant connectors
• Interior plate: flush, powder-coated metal (no bulky plastic intruding into the cabin)
• Hardware: stainless fasteners & mounts

Dimensions & Weight

• Overall length: 31.5 in
• Overall width: 30.9 in
• Overall height (above roof): 7.36 in
• Roof opening (cutout): 14 × 14 in (industry standard)
• Weight: 57.3 lb

Provisional results reflect averaged bins in the X-Series comparison and are useful for planning; final certified performance will be posted following testing.

X3 Helix fits the industry-standard 14×14 in opening and follows a familiar X-Series install flow. Use the guides below (digital versions will be posted as they’re released).

Fit & options

• Roof opening: industry-standard 14×14 in
• Interior presence: low-profile, flush powder-coated metal faceplate
• Voltage options: 12V DC or 48V DC
• Finish options: Black or White

What's included for install

• Foam gasket (14×14), crossbars + mounting hardware
• Flush-mount metal interior faceplate + screws
• Leveling strip; redesigned foam air separator + screw
• Control panel & wire harness (boxed/bagged)
• Full-size 14×14 cutout template (1:1 scale)

Basic install sequence

1. Prep & dry-fit: confirm/cut 14×14; verify clearance with the included 1:1 template.
2. Gasket & placement: seat gasket, position unit, confirm level.
3. Secure: install crossbars and hardware; tighten evenly in a criss-cross pattern.
4. Interior assembly: install air separator and faceplate.
5. Electrical: connect DC (12V/48V), route harness, verify fuse access.
6. Commission: power on, verify airflow and temperature hold.

Downloads

• X3 Helix Install Guide (PDF) — 14×14 opening, gasket/crossbars, wiring, commissioning. (coming soon)
• X3 Helix Troubleshooting Guide (PDF) — startup checks, airflow verification, control logic basics, error states. (coming soon)
• Wiring Diagram — 12V (PDF) & 48V (PDF) — fuse sizing, isolation notes, harness routing. (coming soon)
• Cutout Template 14×14 (PDF) — full-scale 1:1 (printed in box). (digital copy coming soon)
• Control Panel Pinout (PDF) — connector map, fuse locations. (coming soon)
• Helix AC Controller — RV-C Quickstart & Message Map (PDF) (coming soon)
• Shipping, Returns & Order Policy

Pro tips

• Dry-fit before sealing; plan wire routing.
• Evenly compress the gasket; don’t over-torque.
• Install the redesigned plenum/air separator as directed for best airflow.
• Set a “Quiet Night” scene in Helix for low-RPM hold while sleeping.

X3 Helix is priced for long-term ownership, not disposability. Here’s what you’re paying for—and why it matters on the road:

• Stable comfort: PWM modulation with improved control logic reduces overshoot and battery stress.
• True remote control: Helix scenes, schedules, and access from phone, tablet, and watch—beyond Bluetooth range.
• Road-tough build: flush metal interior plate, corrosion-resistant hardware, sealed back plate, and automotive-grade, water-resistant connectors.
• Airflow & moisture: redesigned internal plenum/air separator and High Humidity mode for real-world cabins.
• Future-ready: R1234yf (low-GWP A2L) aligned with modern standards and service considerations.
• Support you can reach: US-based tech team in Elkhart, Indiana.

Total cost of ownership: steadier comfort, fewer service headaches, and a platform designed to be maintained—not tossed.

**Builder-grade option: RV-C integration (via the optional Helix AC Controller) reduces wall clutter and unifies coach UX on multiplex panels.**
