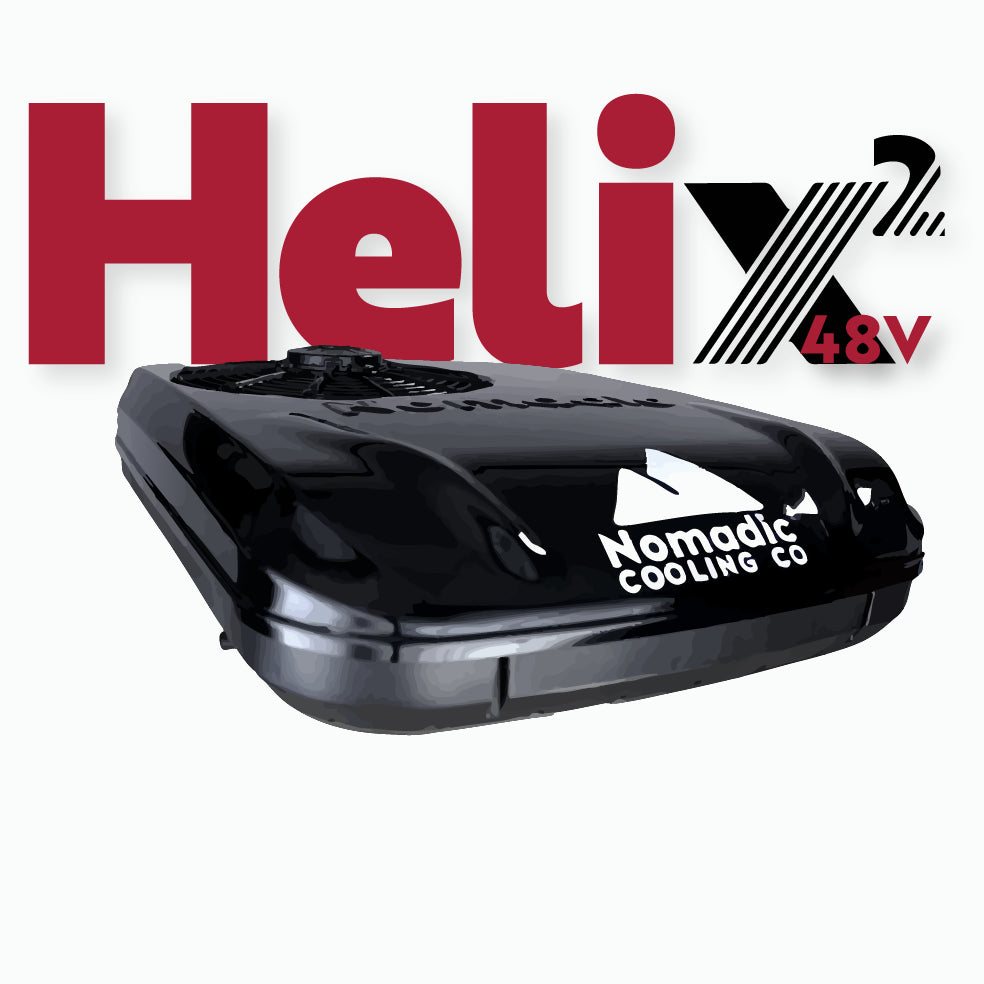

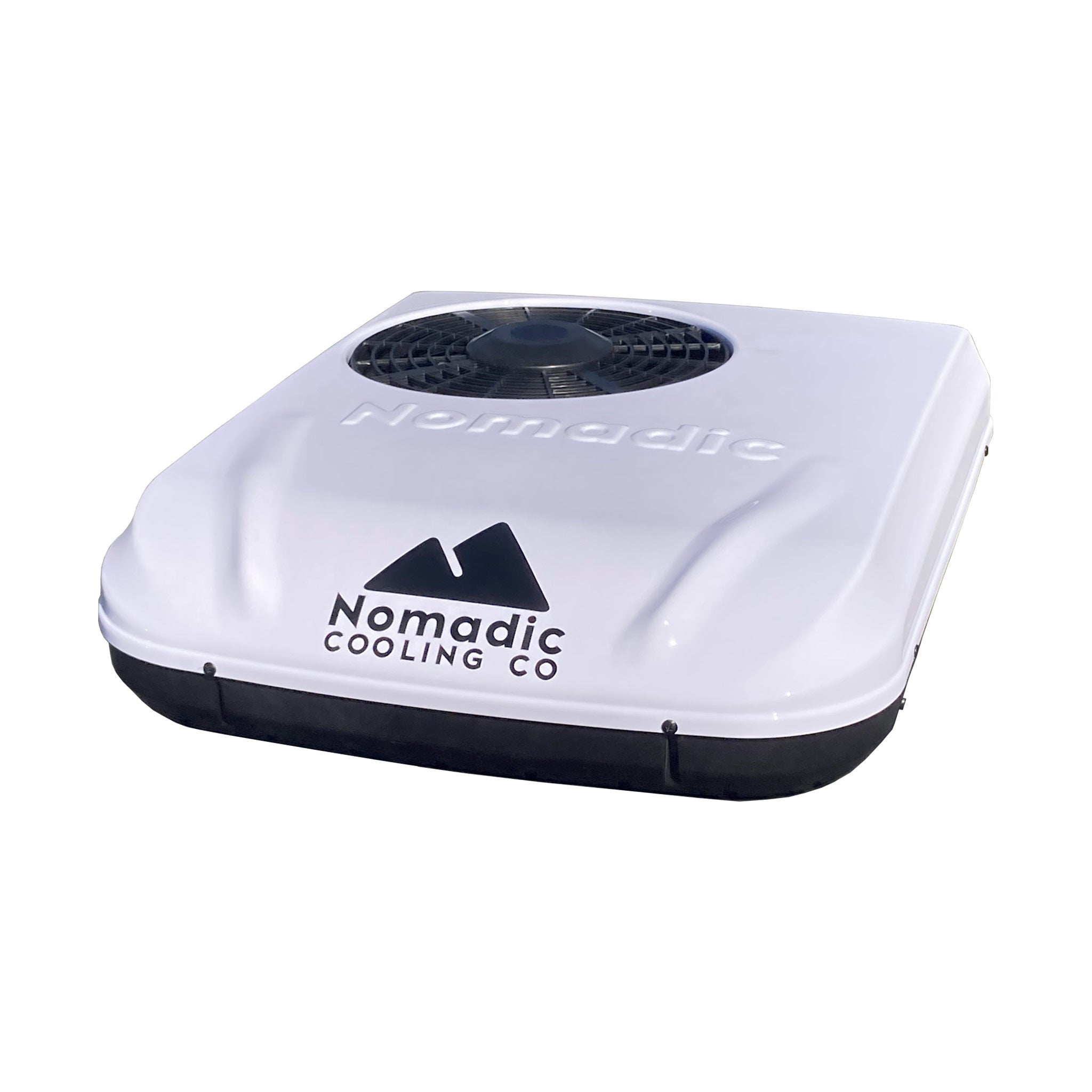

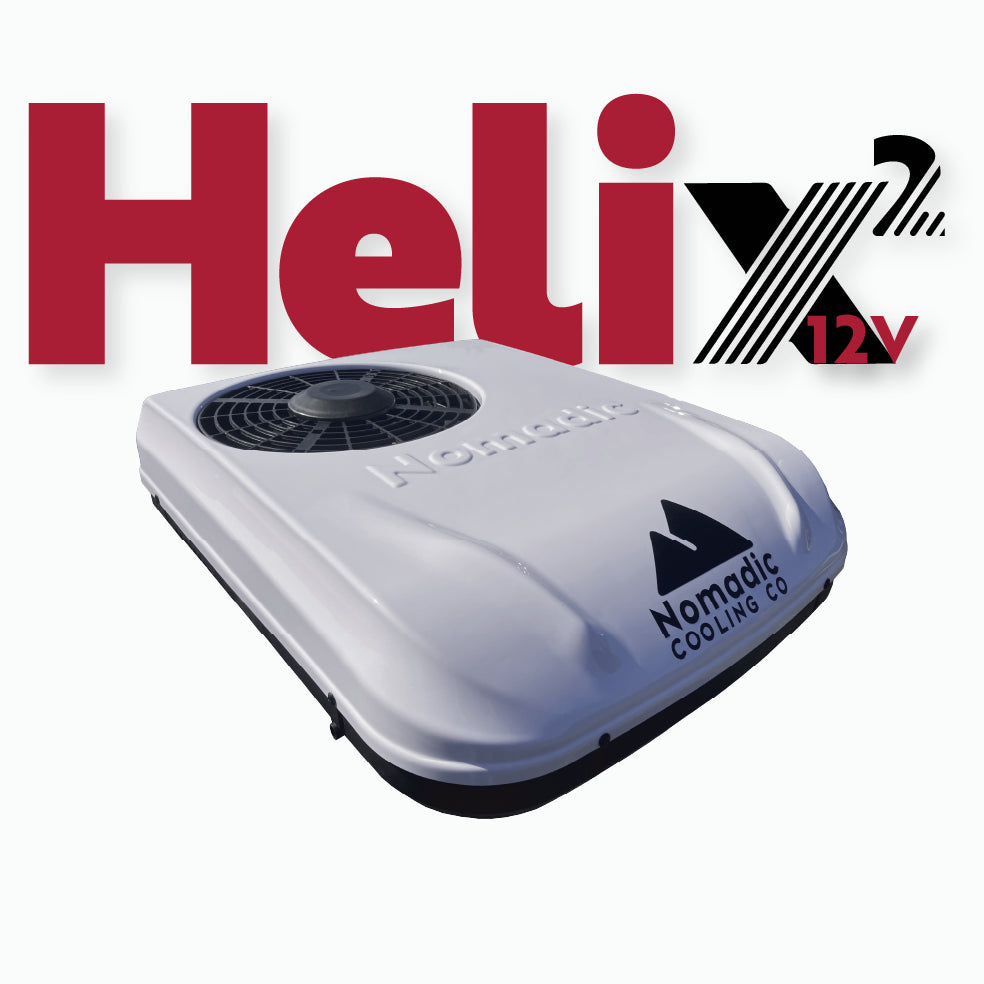

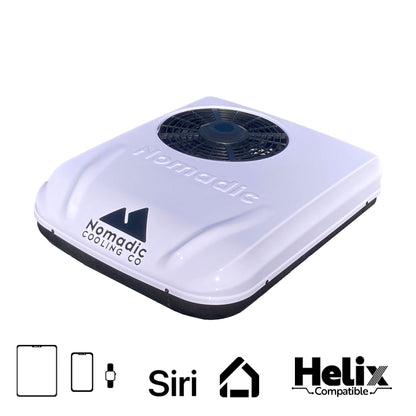

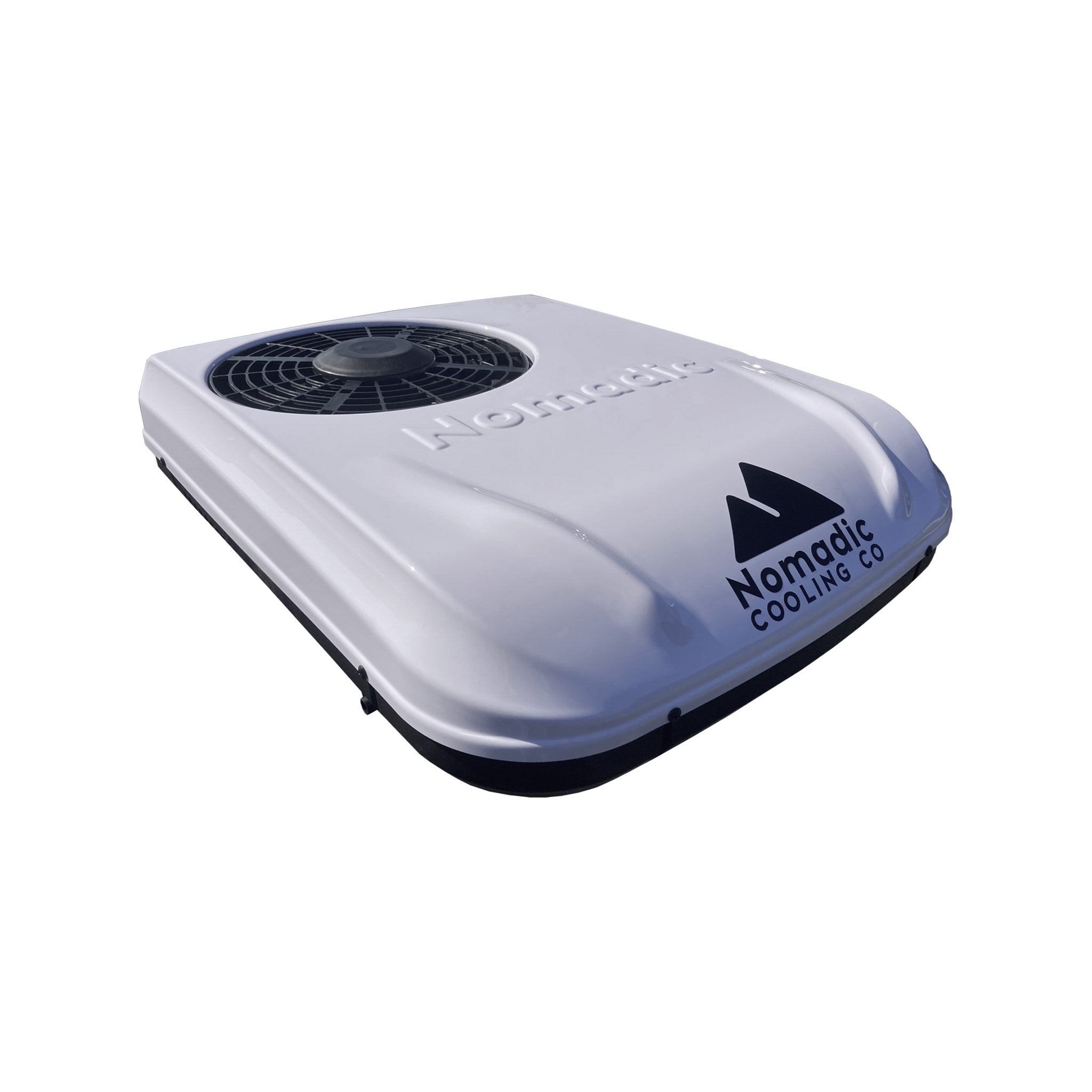

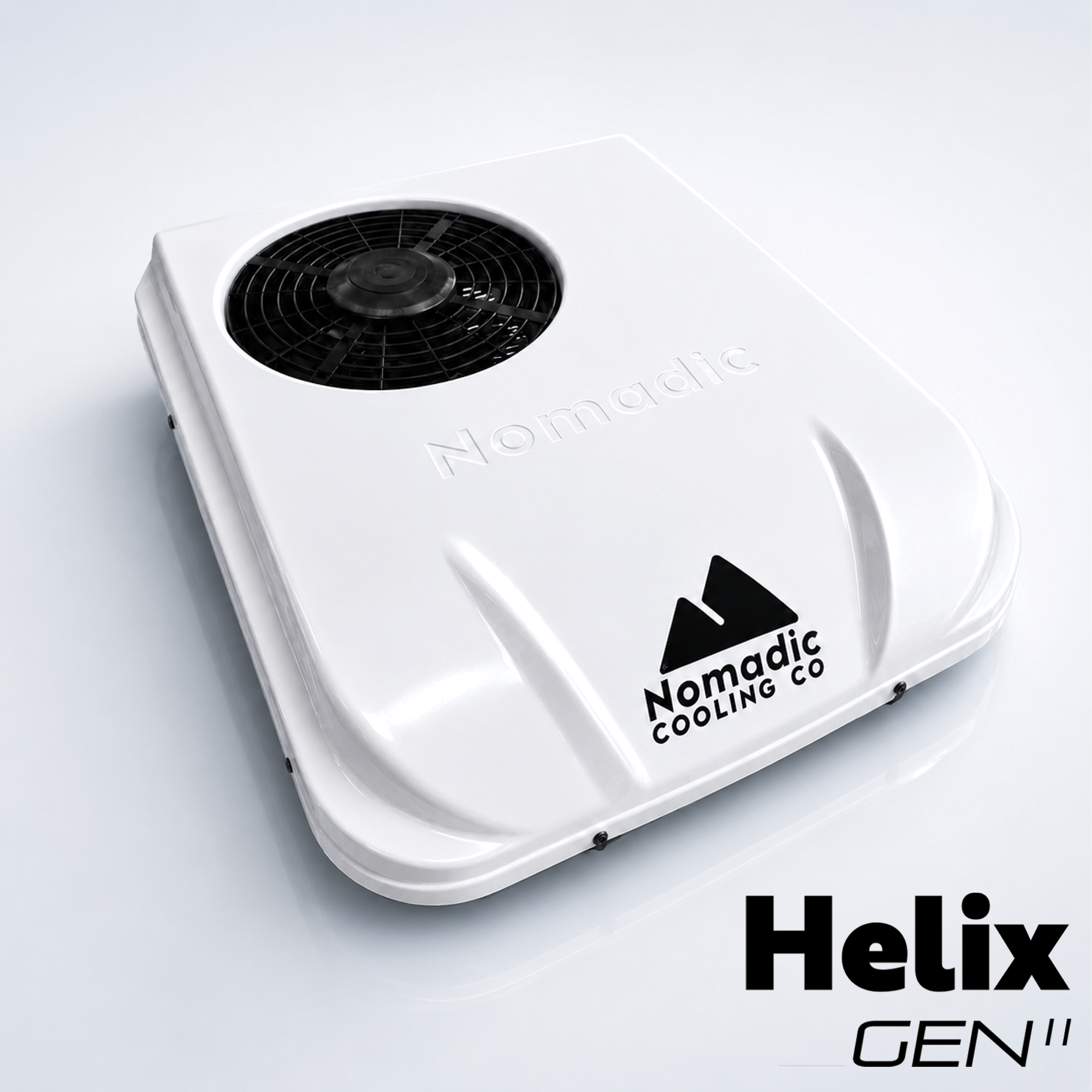

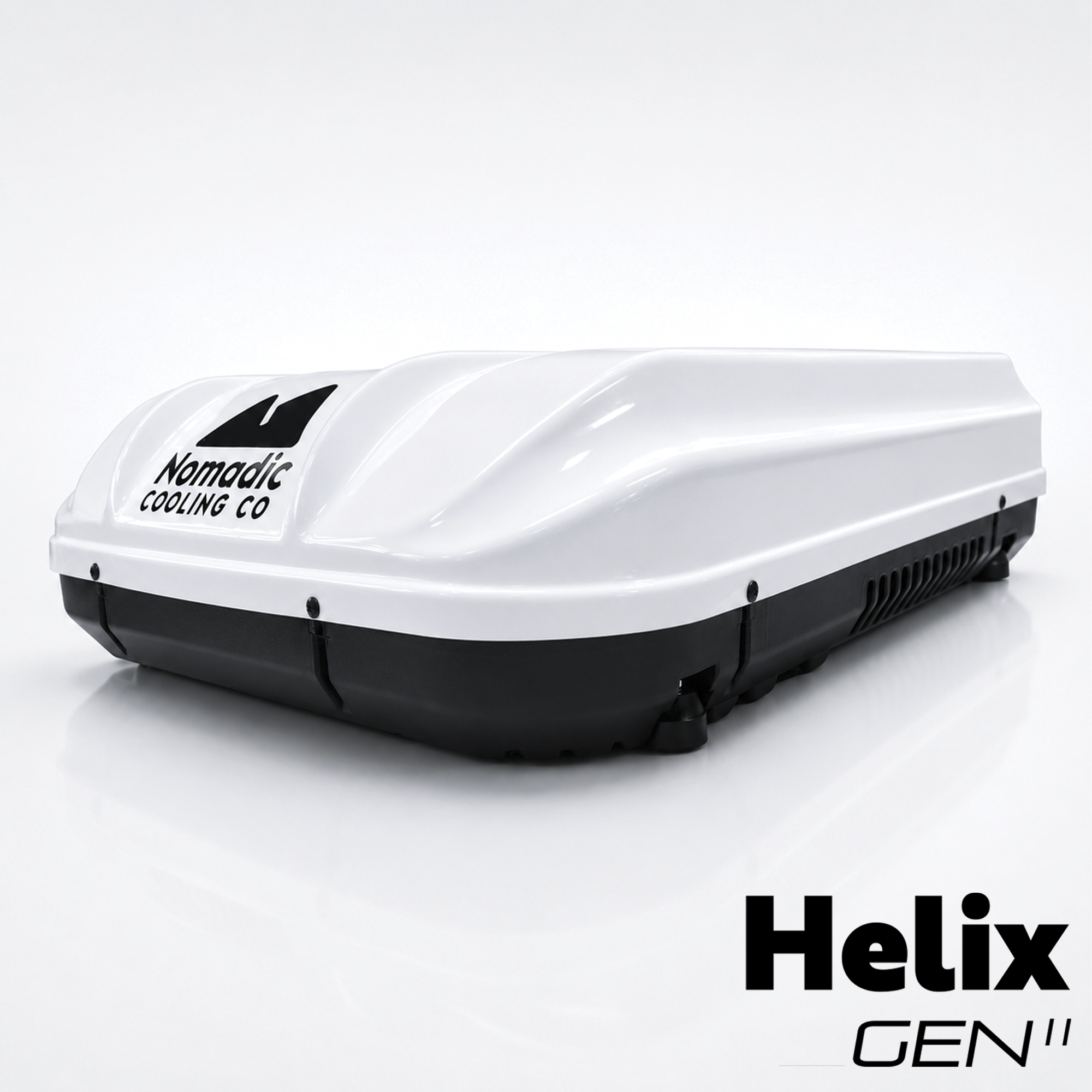

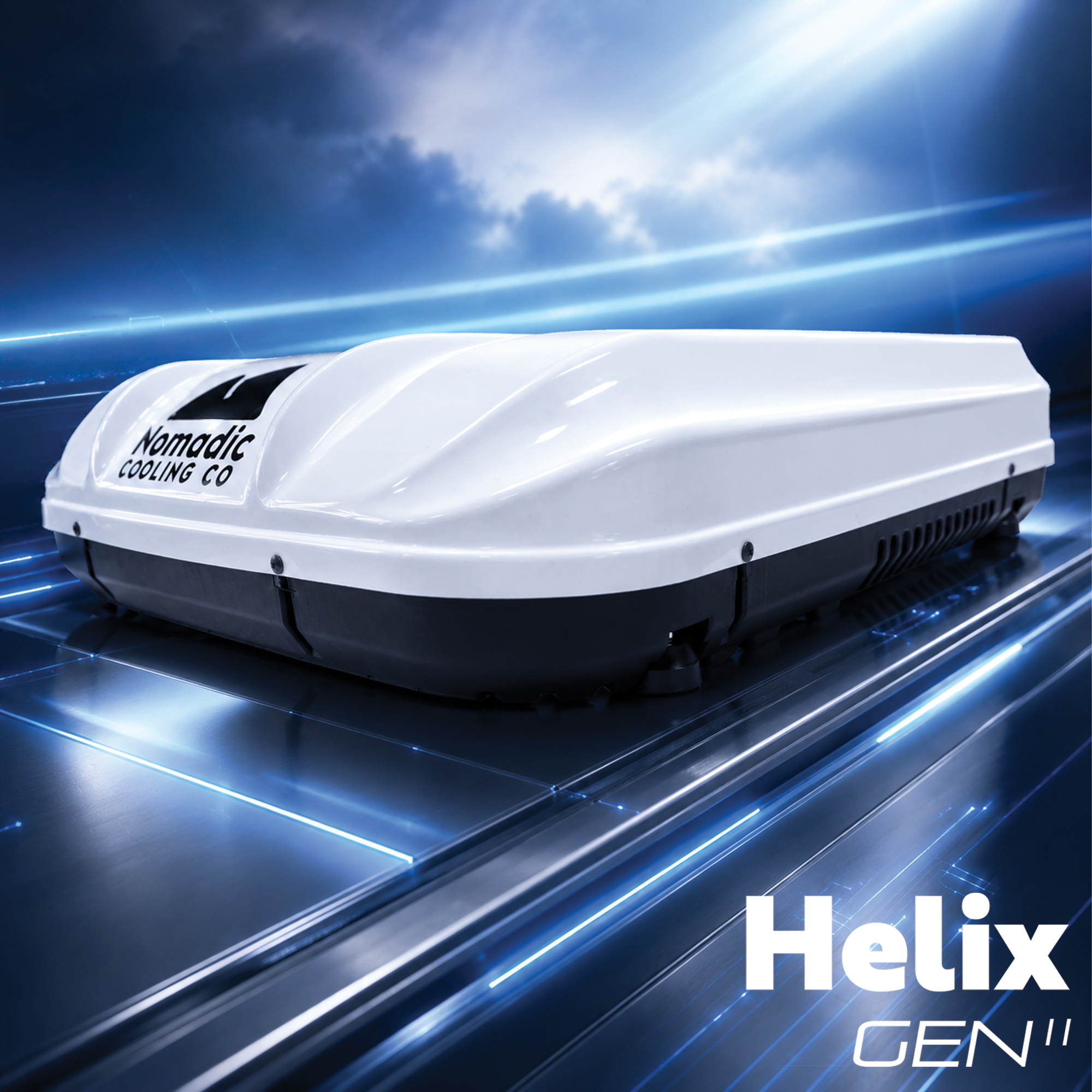

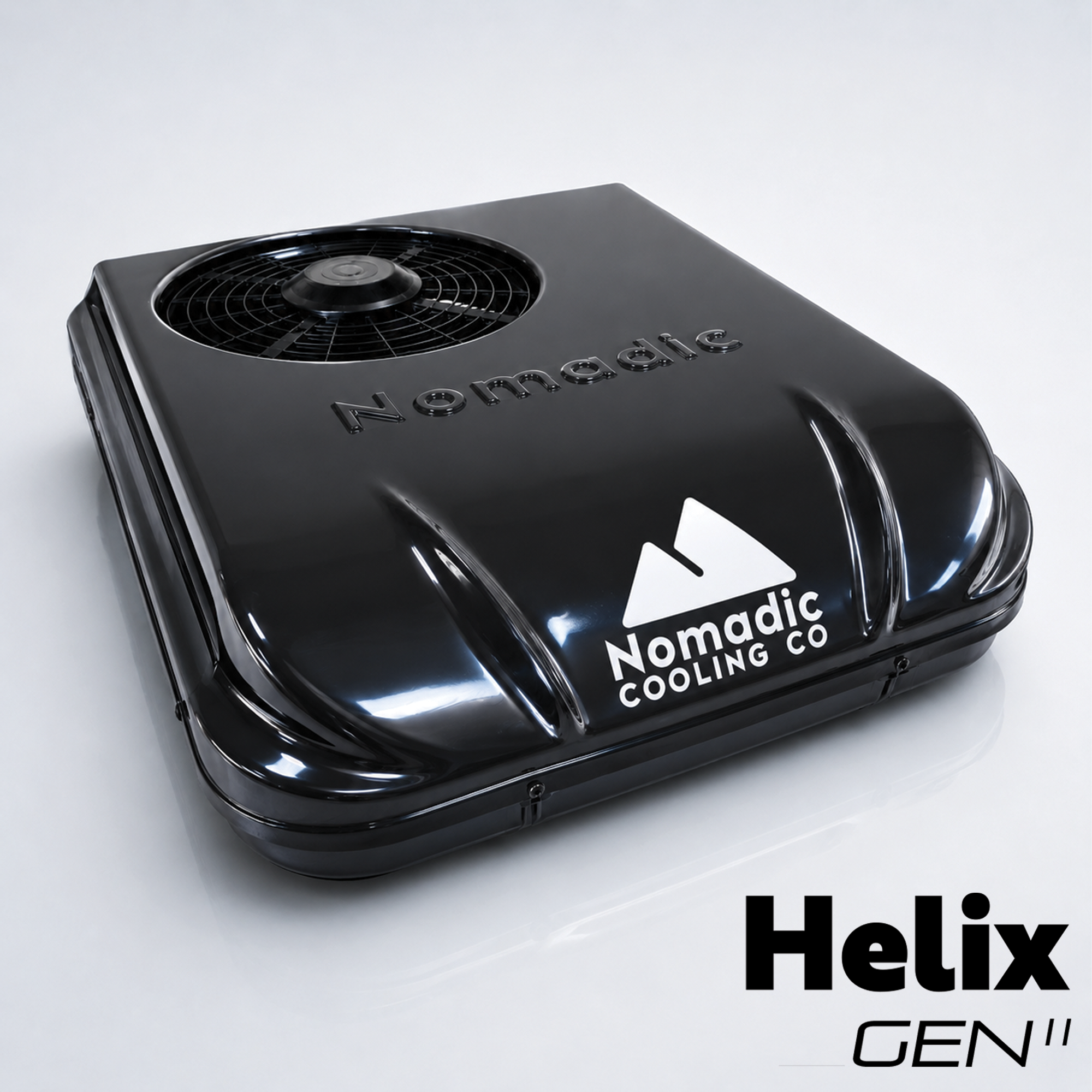

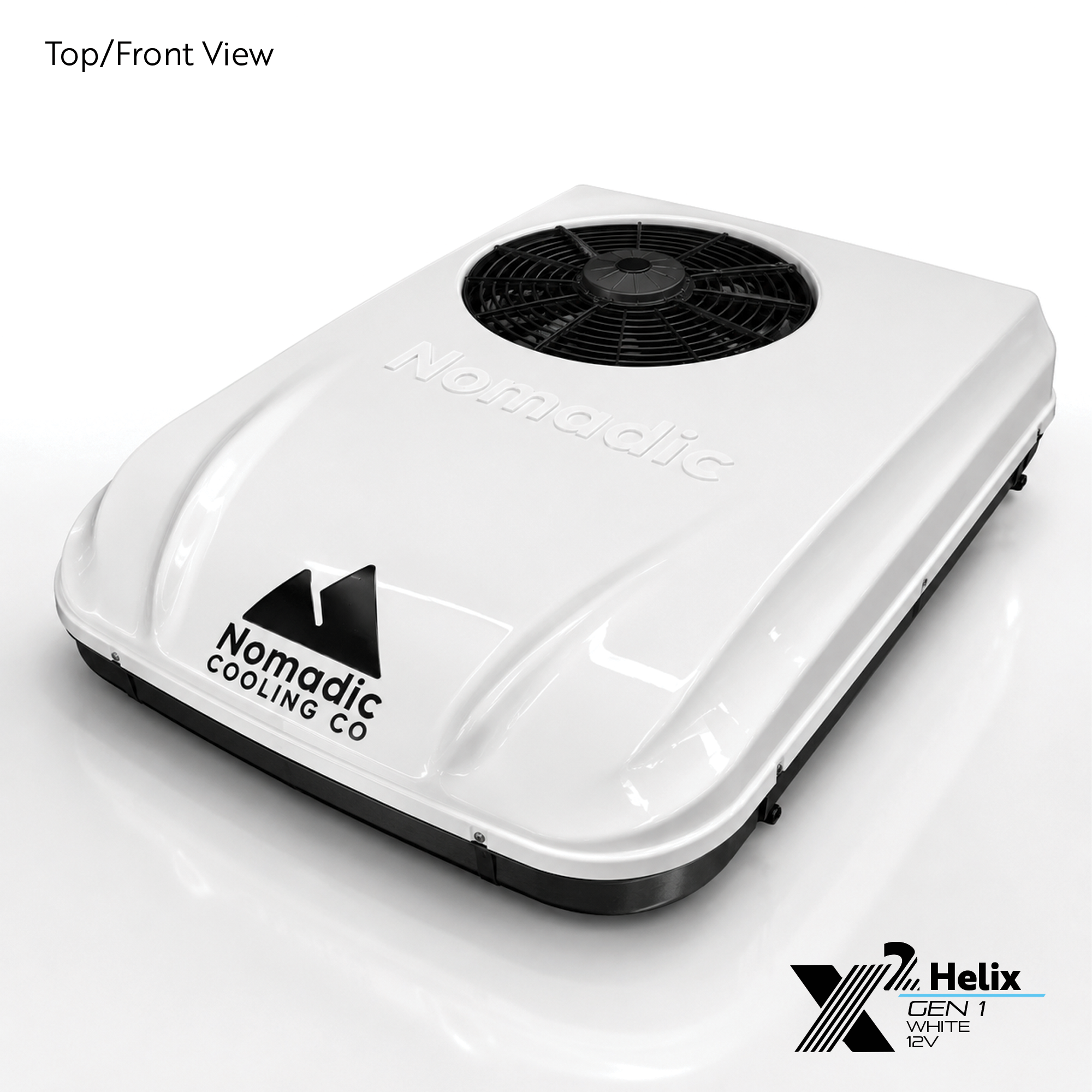

X2 Helix Compact 12V/48V DC RV & Van Rooftop Air Conditioner (Helix-Ready)
Compact footprint leaves more roof room for solar and works with a modest battery bank. X2 Helix is a 12V RV/Van air conditioner (also 48V) with PWM-smooth cooling, Helix scenes/schedules and remote control, a flush powder-coated metal interior plate, High Humidity mode, and US-based support.
Couldn't load pickup availability
Pickup available at HQ 4-Elkhart, IN
Usually ready in 2-4 days
Make it Helix-Smart — Save 15%
Key Highlights

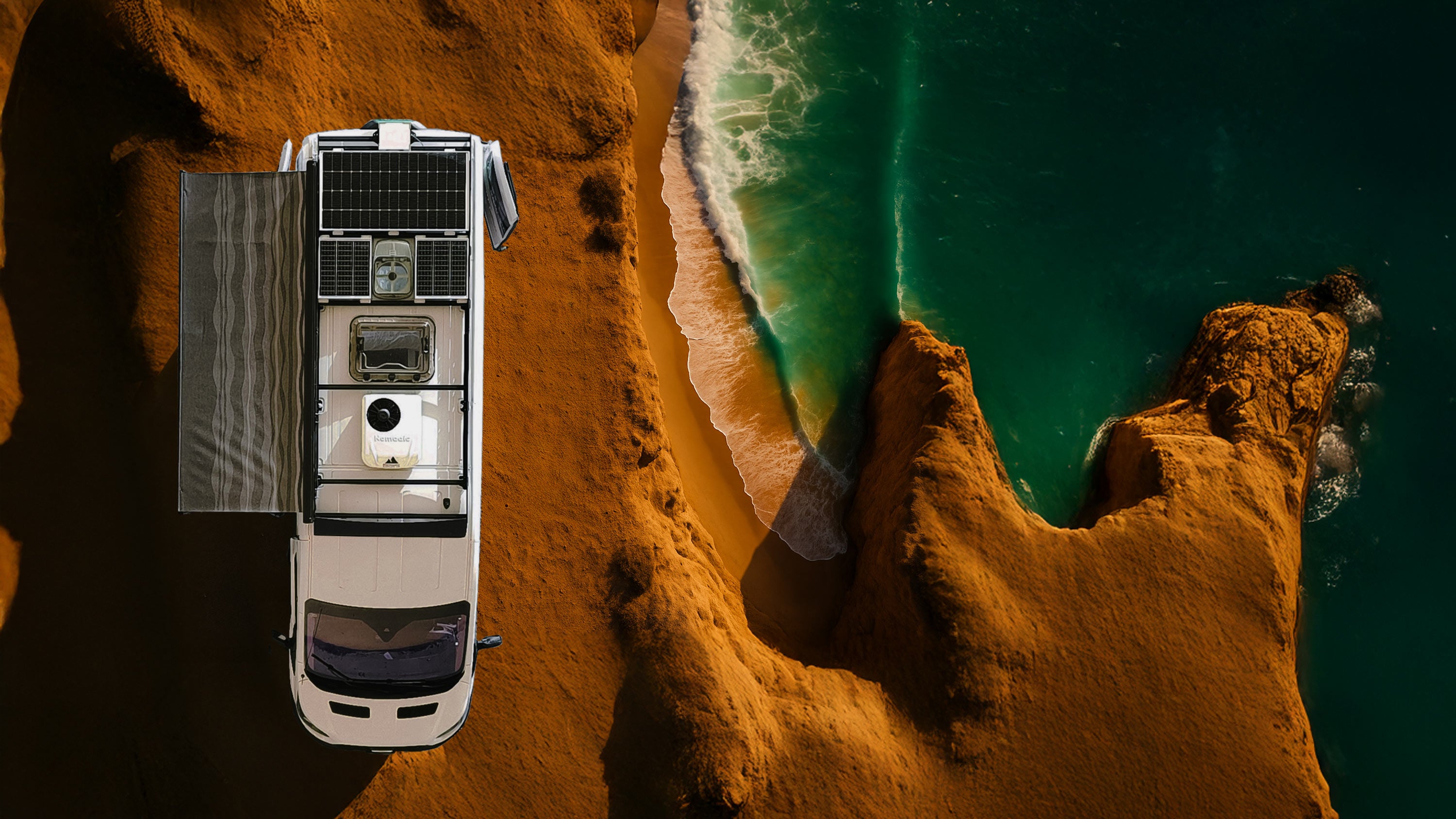

- Compact footprint leaves more roof room for solar.
- Works with a modest 12V battery banks; also offered in 48V.
- Efficient PWM compressor holds target temperature.

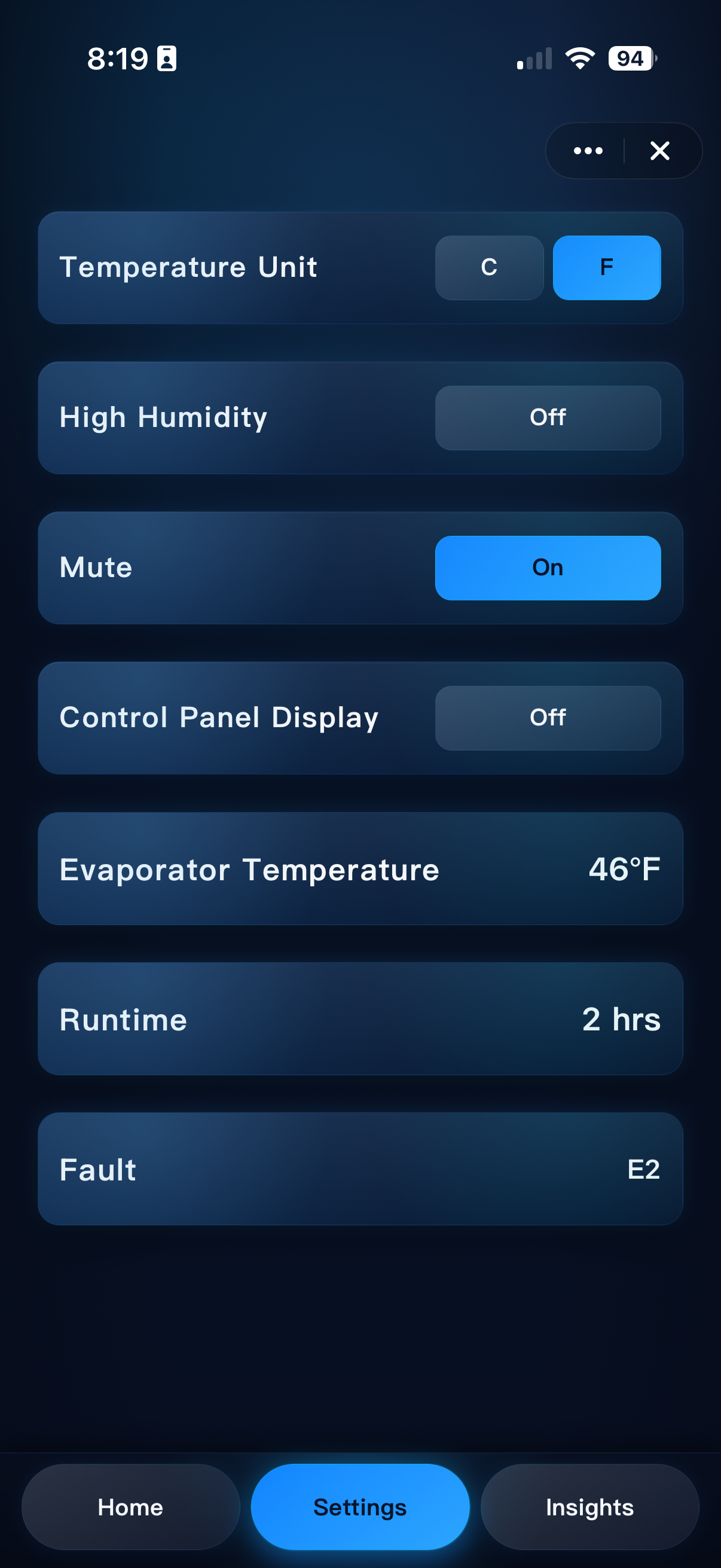

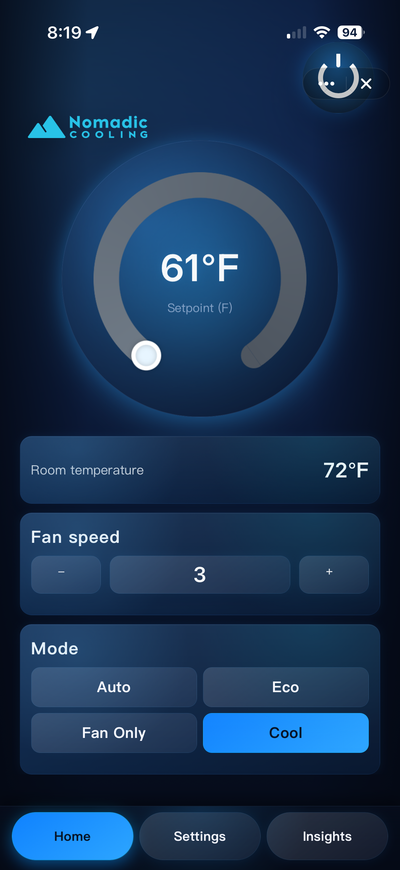

- Helix control on phone, tablet & watch—remote access, scenes & schedules.
- Stainless hardware resists corrosion coast to coast.

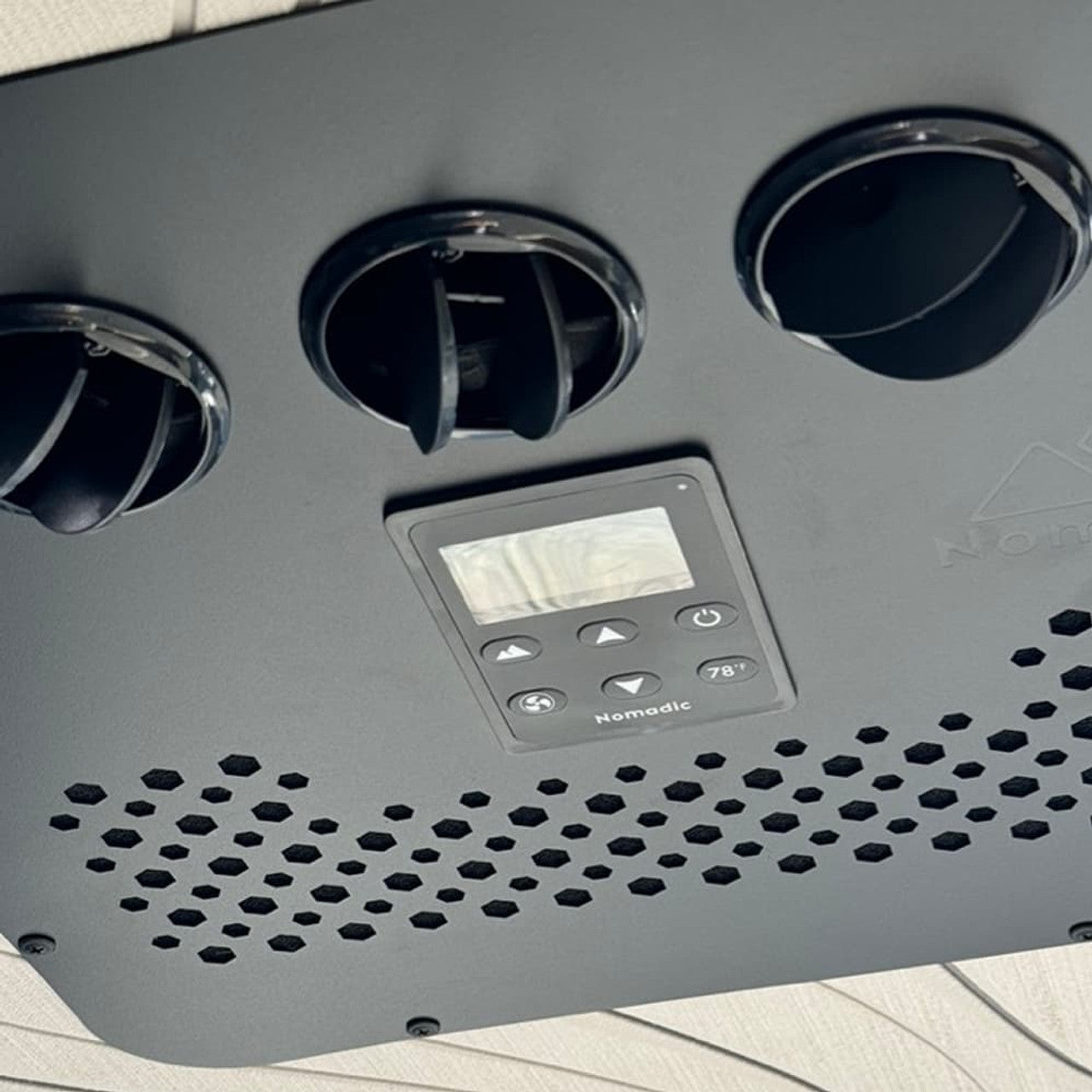

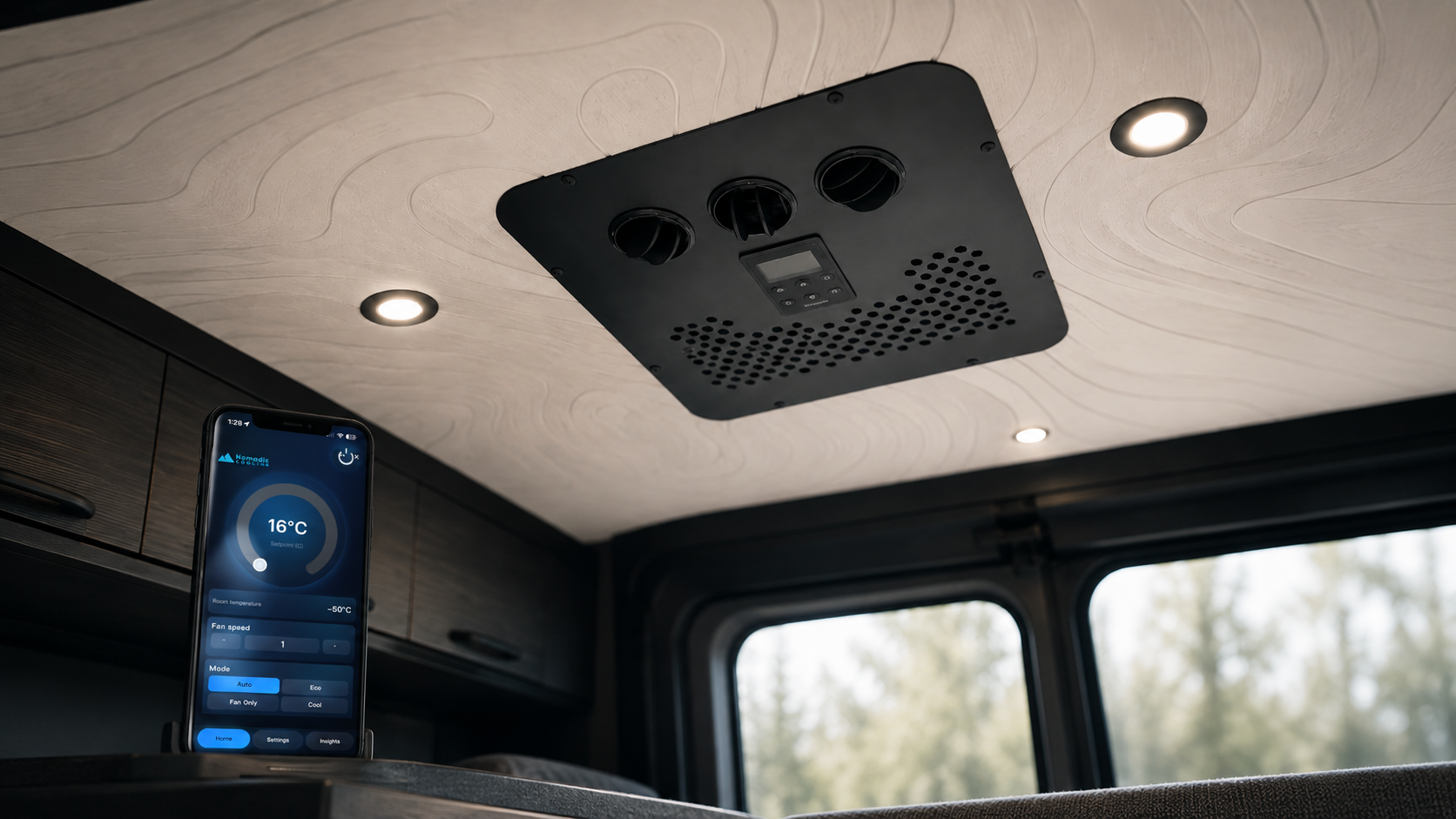

- Flush, powder-coated interior plate—clean look, no bulky plastic.

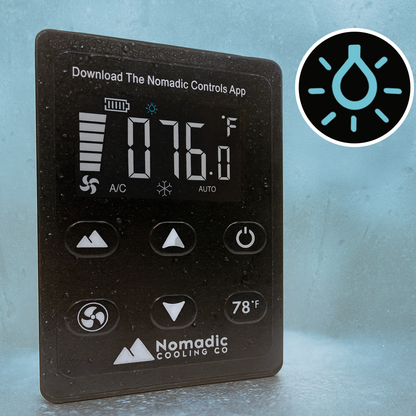

- High Humidity mode clears moisture in van/RV cabins.
- Sealed back plate + automotive-grade, water-resistant connectors protect electronics.
- US-based tech support — Elkhart, Indiana.

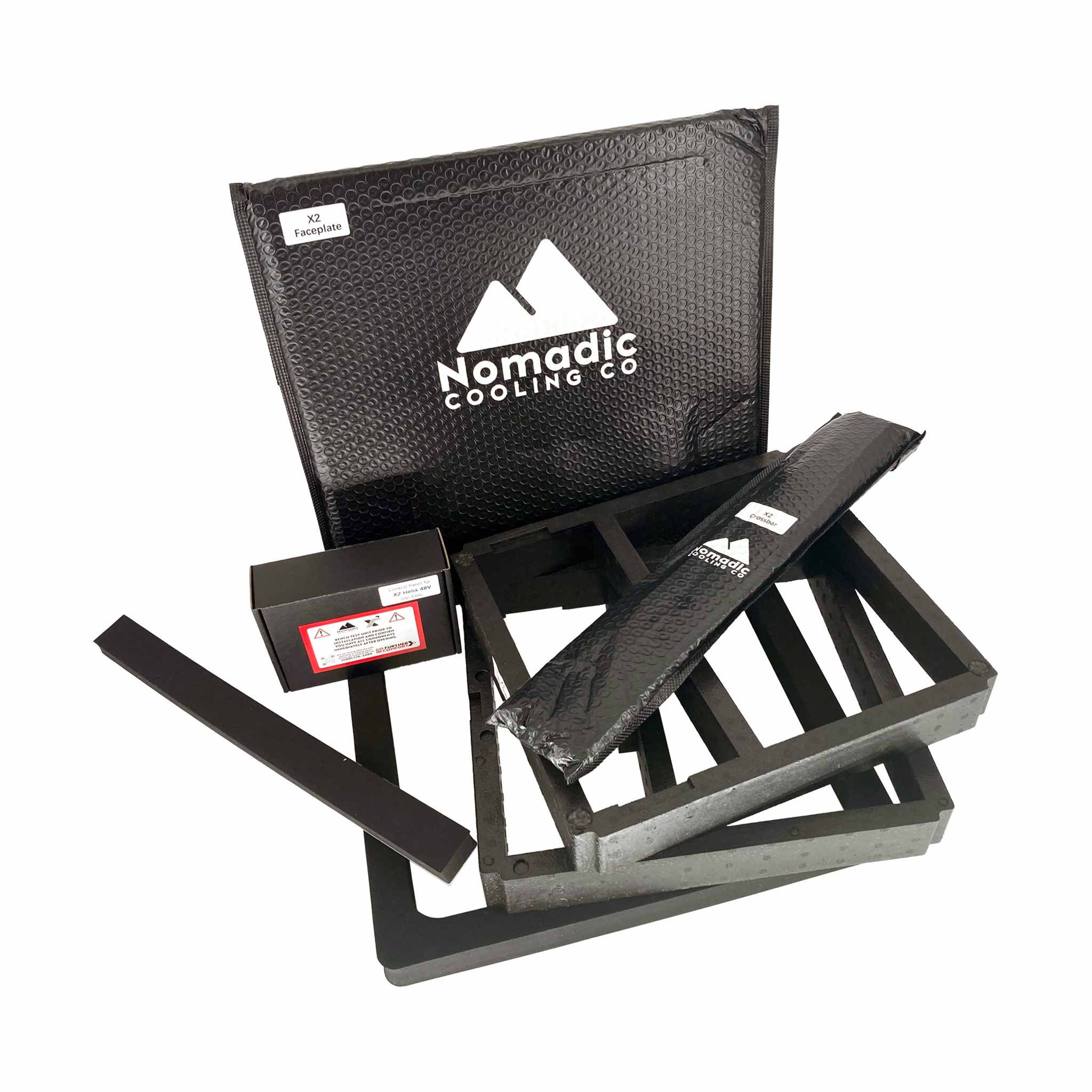

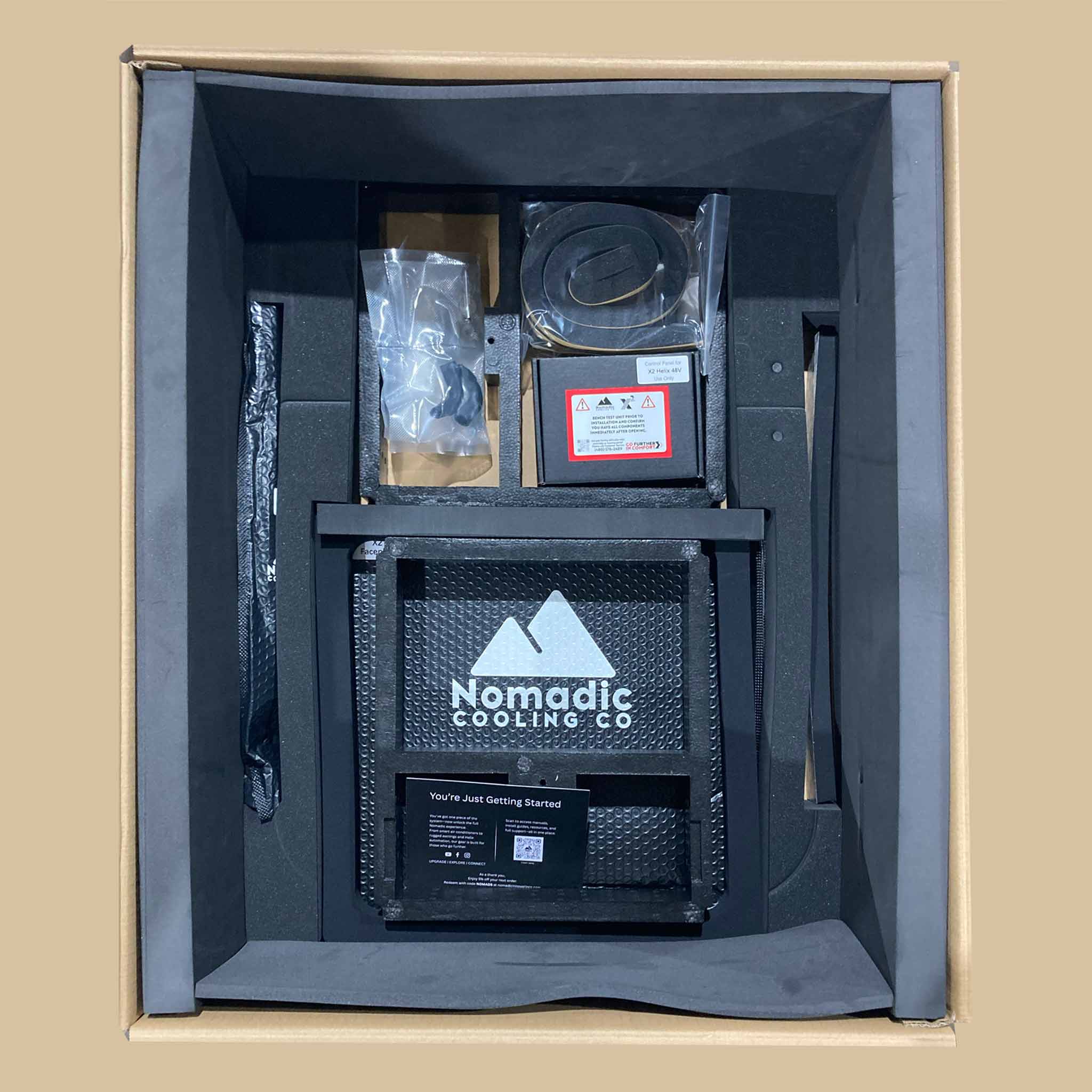

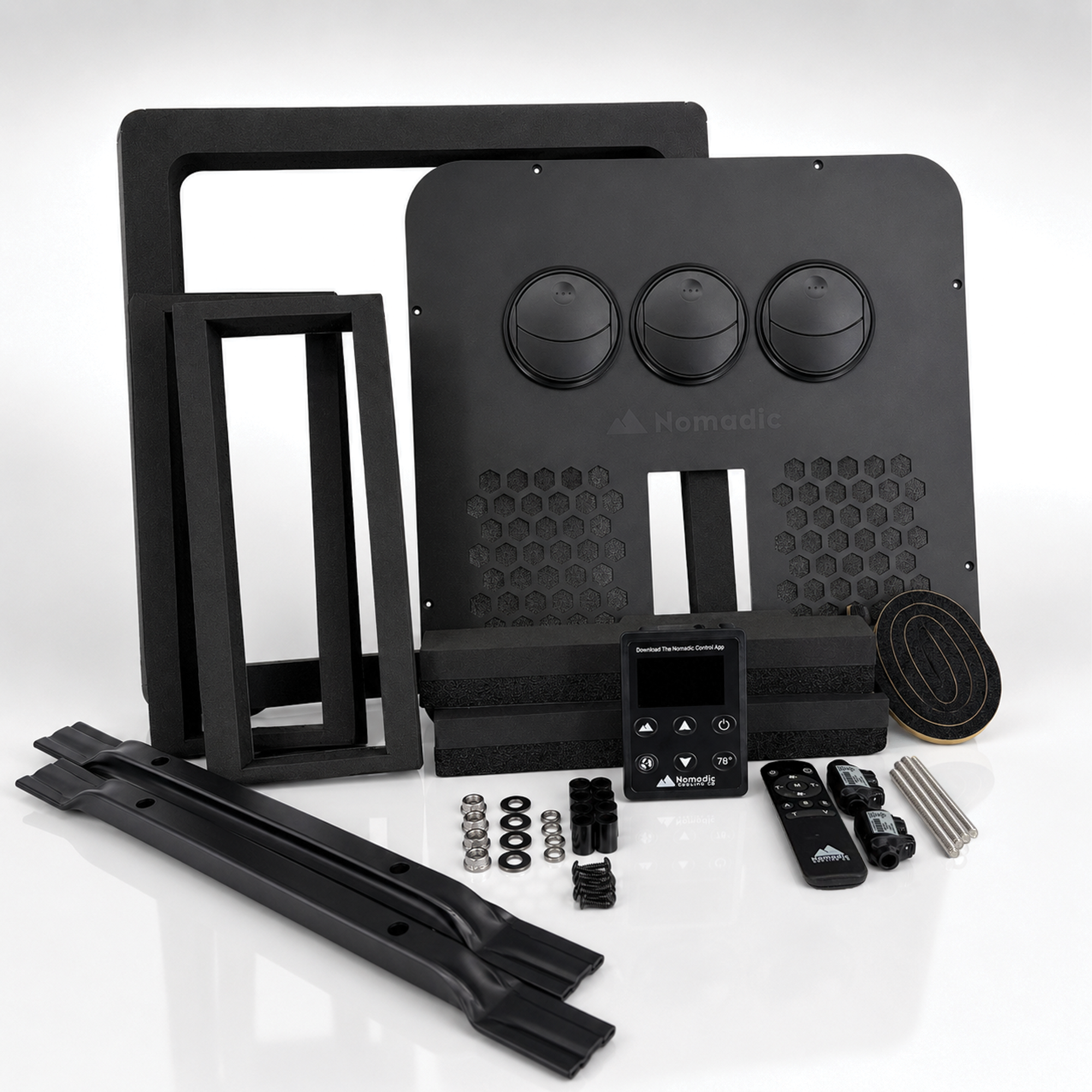

What's Included

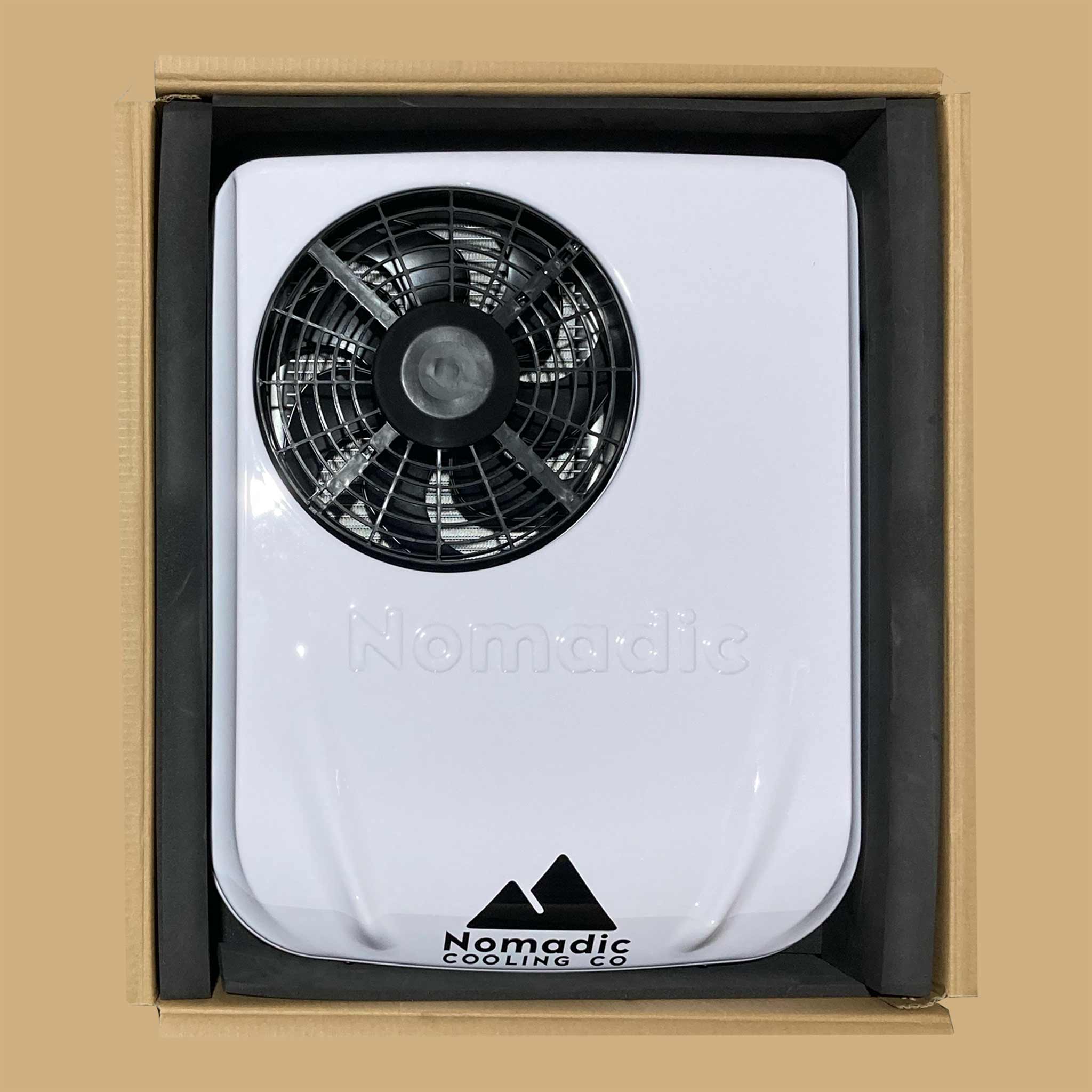

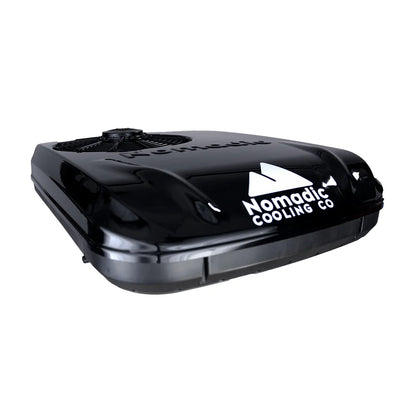

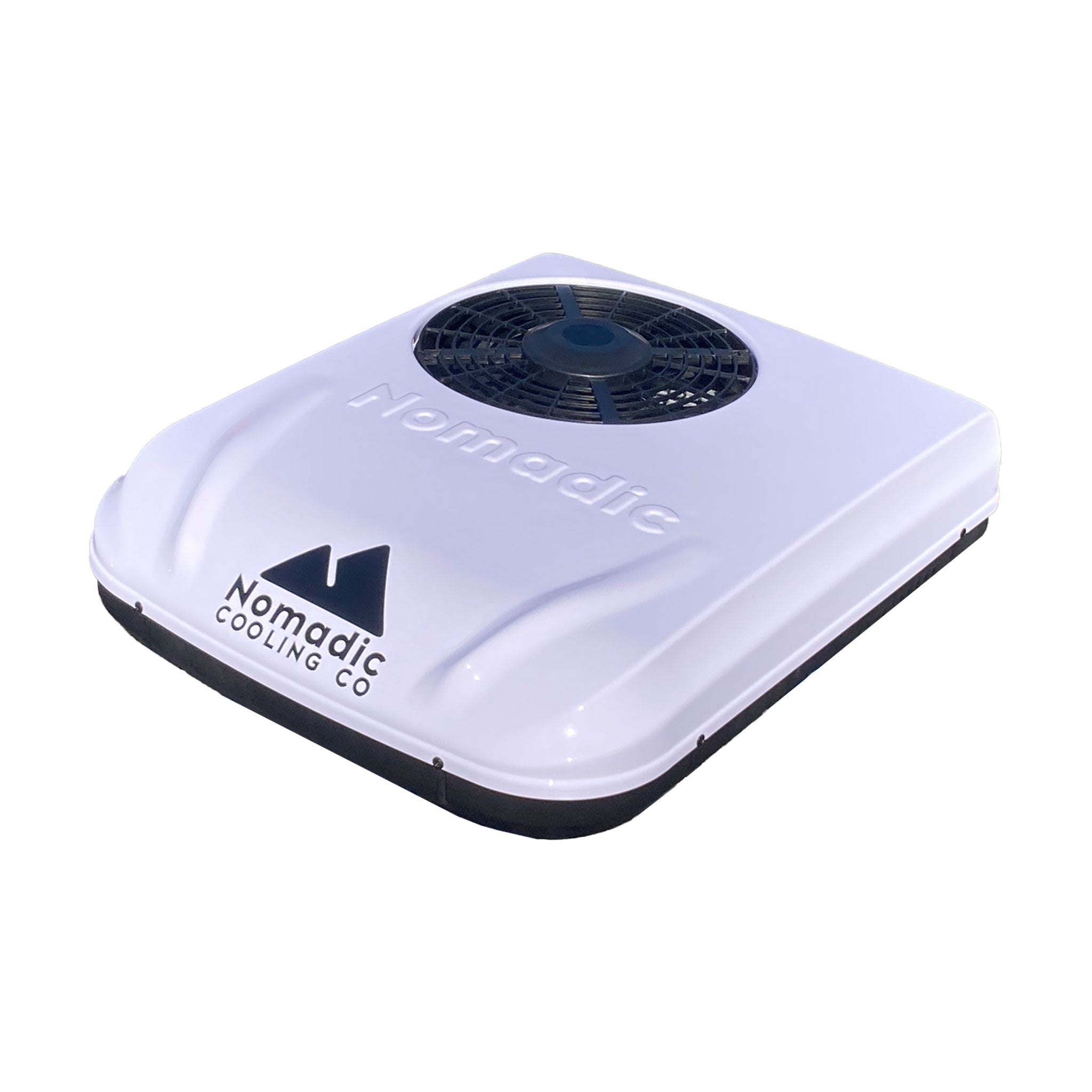

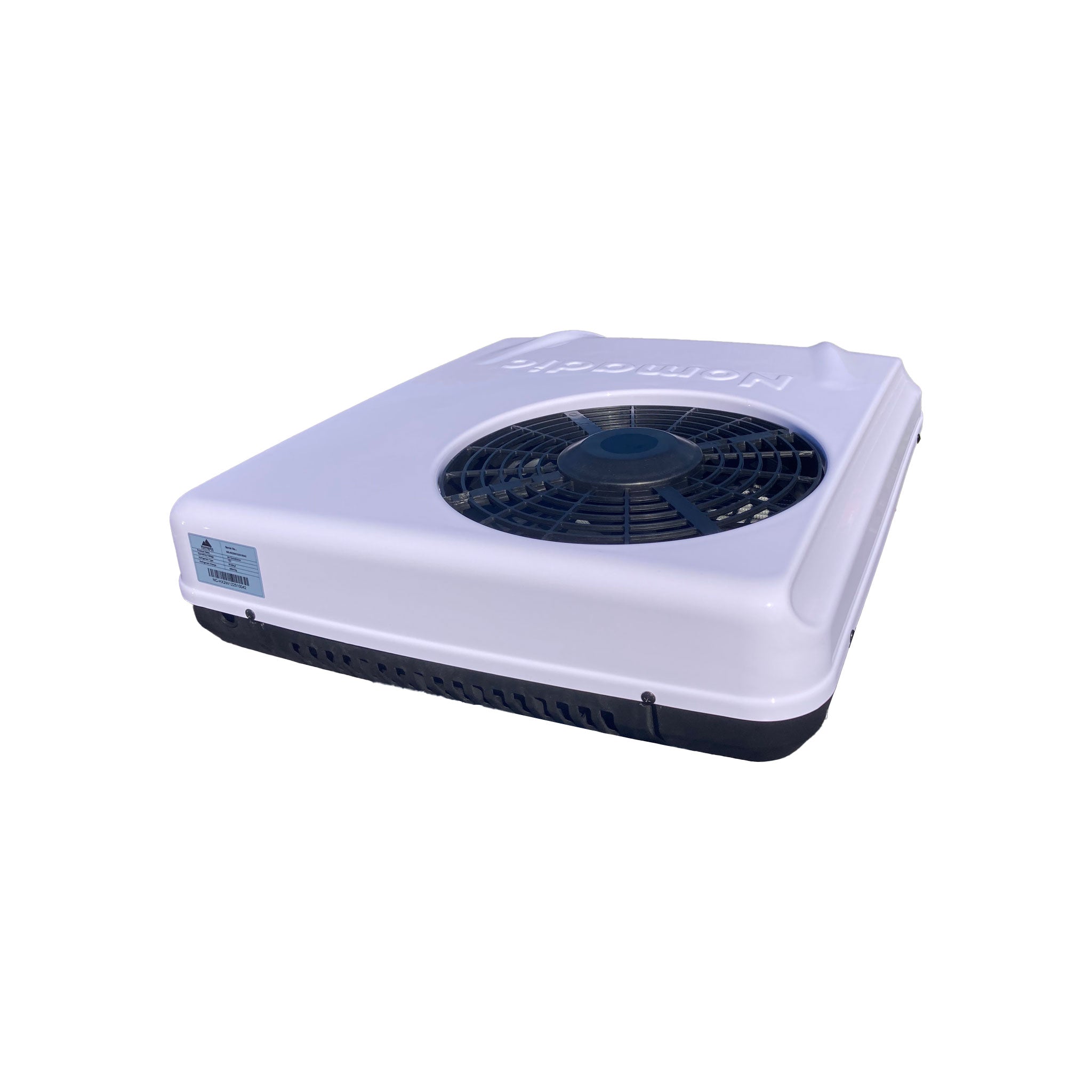

- X2 Helix rooftop unit — Black or White
- Foam gasket for standard 14×14 roof opening
- Crossbars (foam-wrapped) with mounting hardware

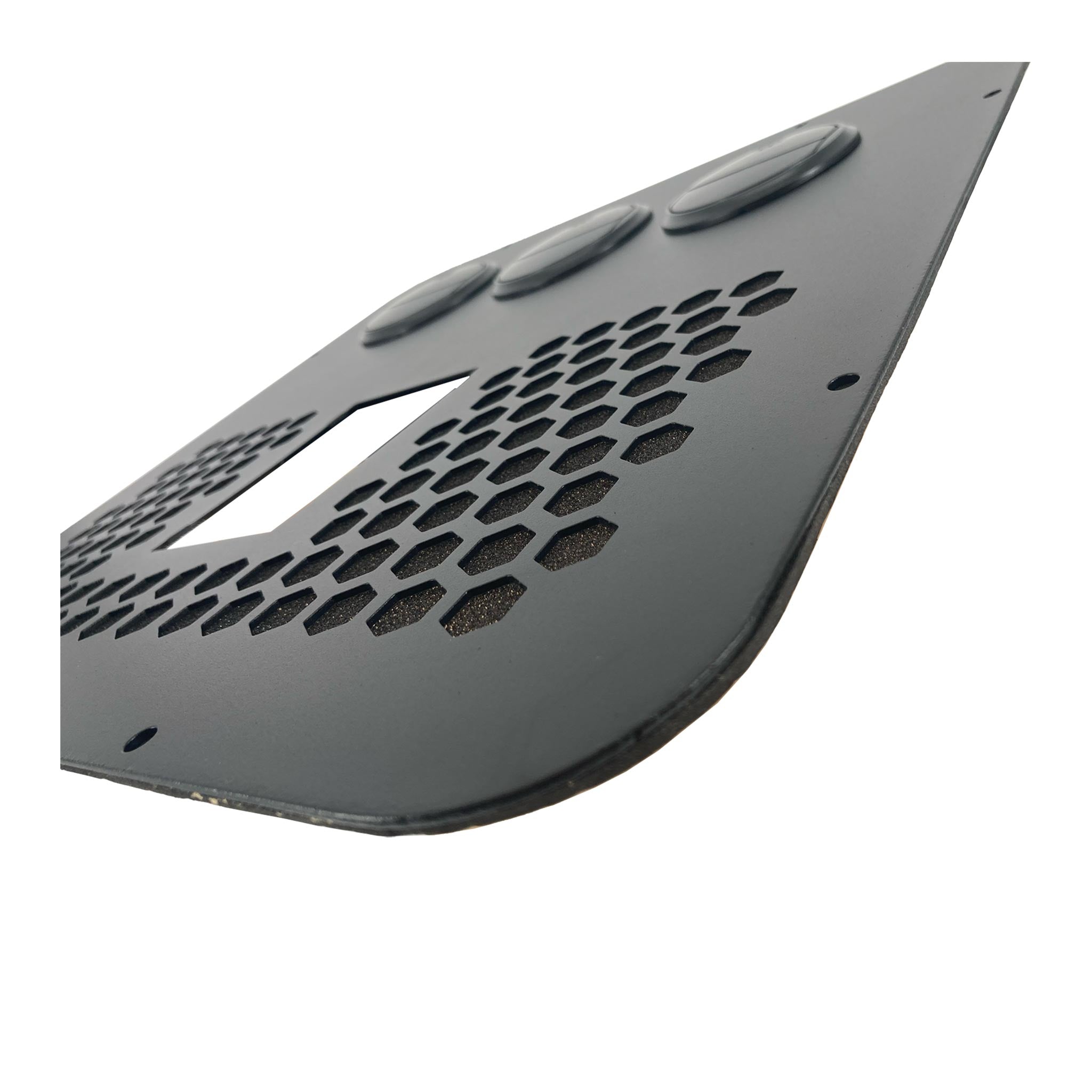

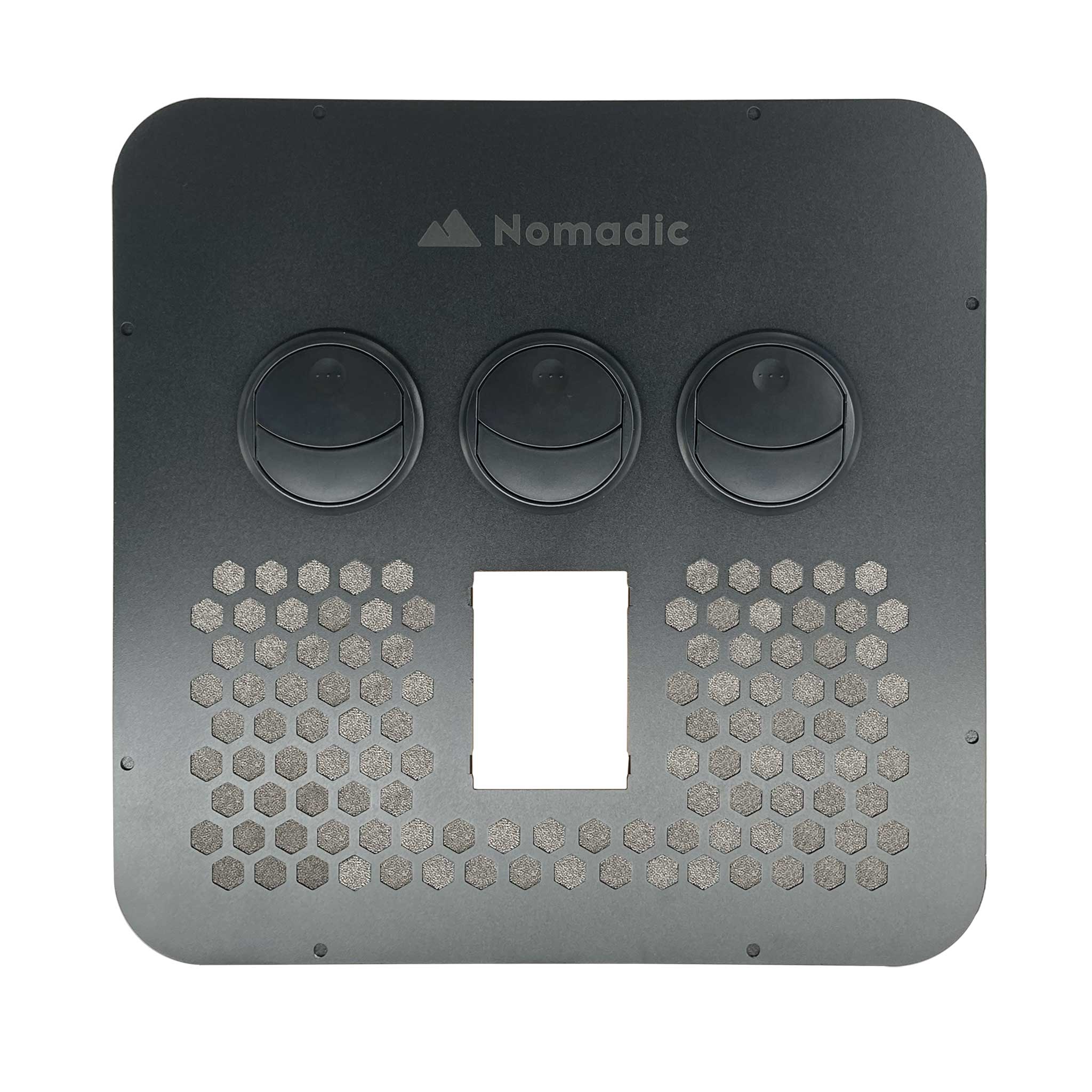

- Flush-mount metal interior faceplate (in protective foam pouch)

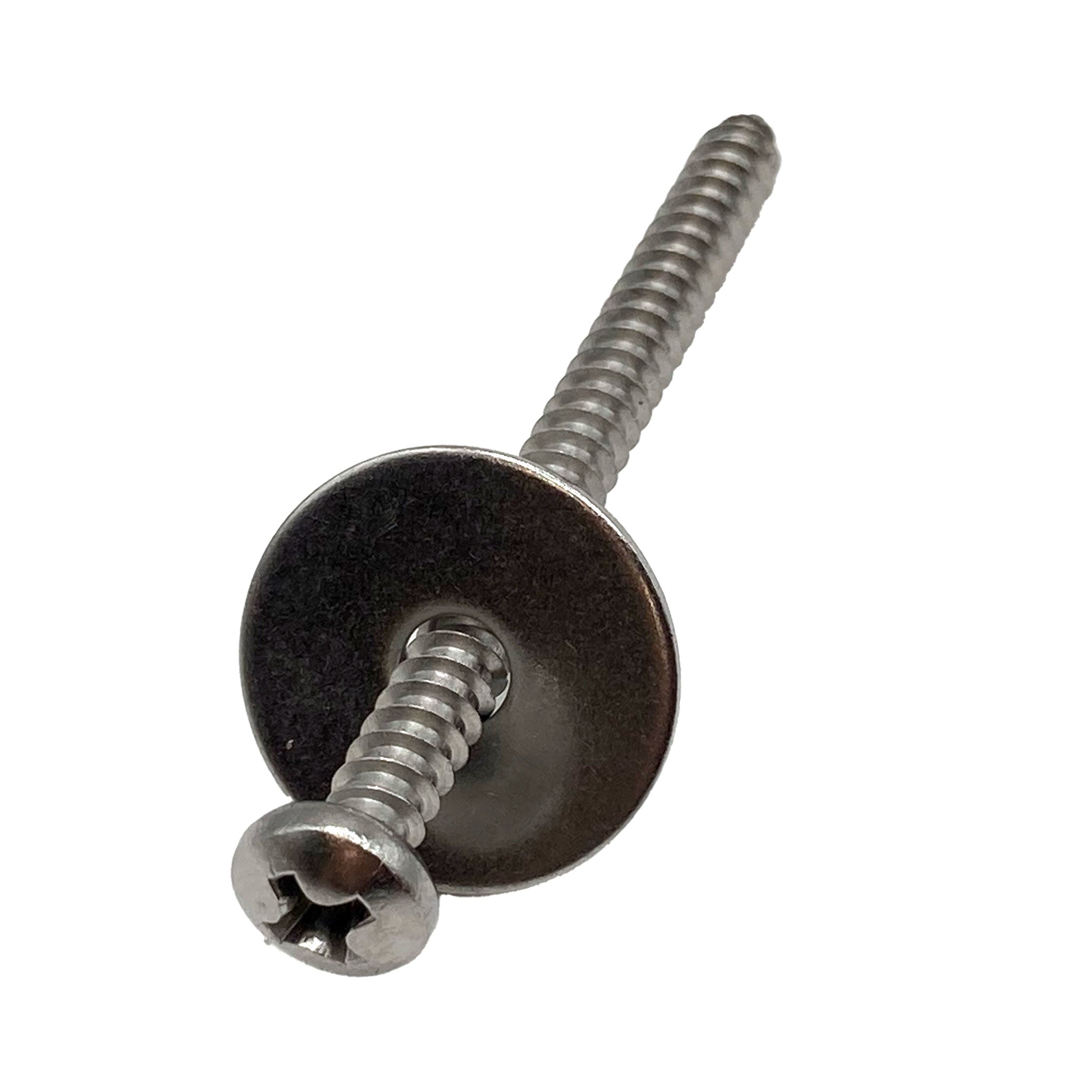

- Faceplate screws (black)

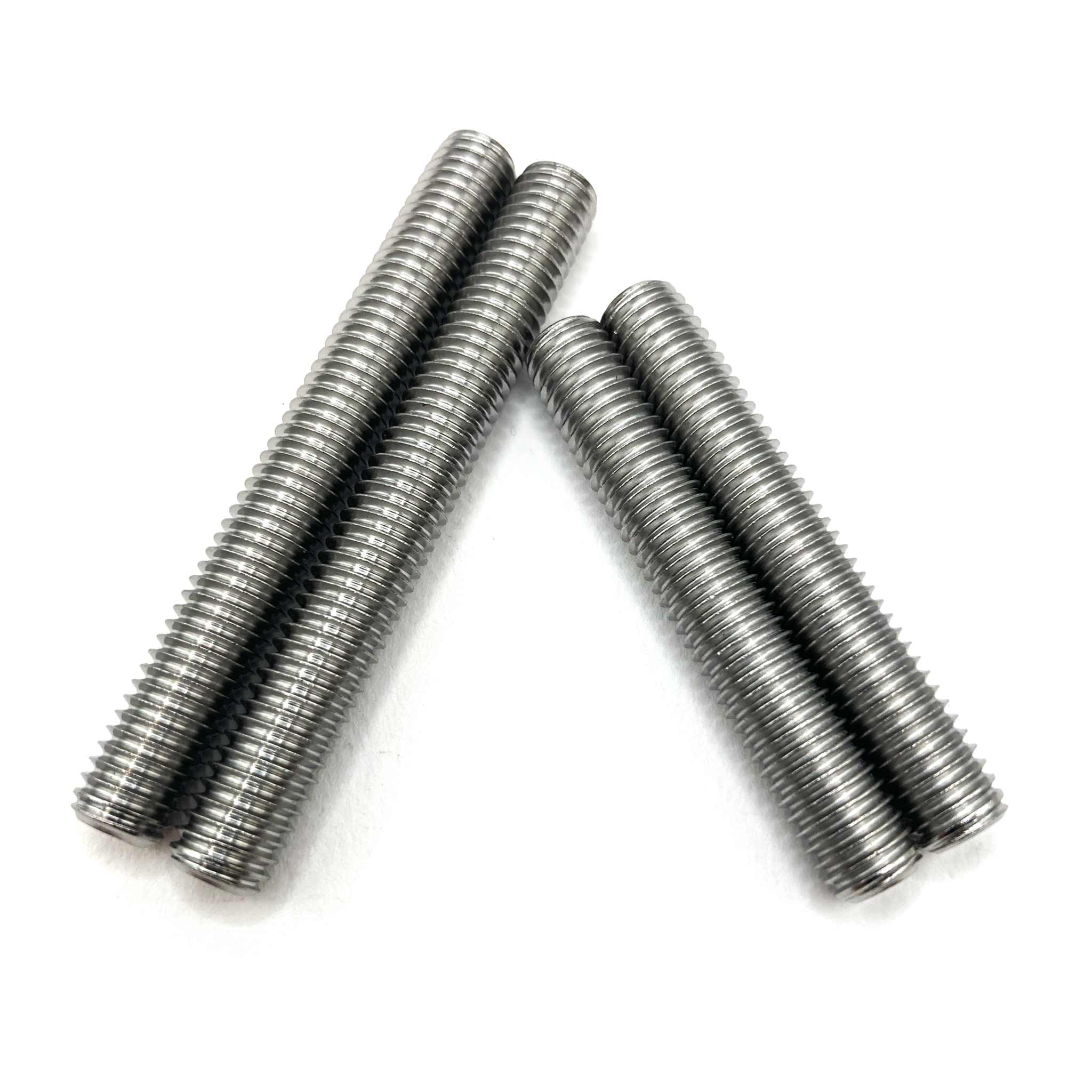

- M8 mounting bolts

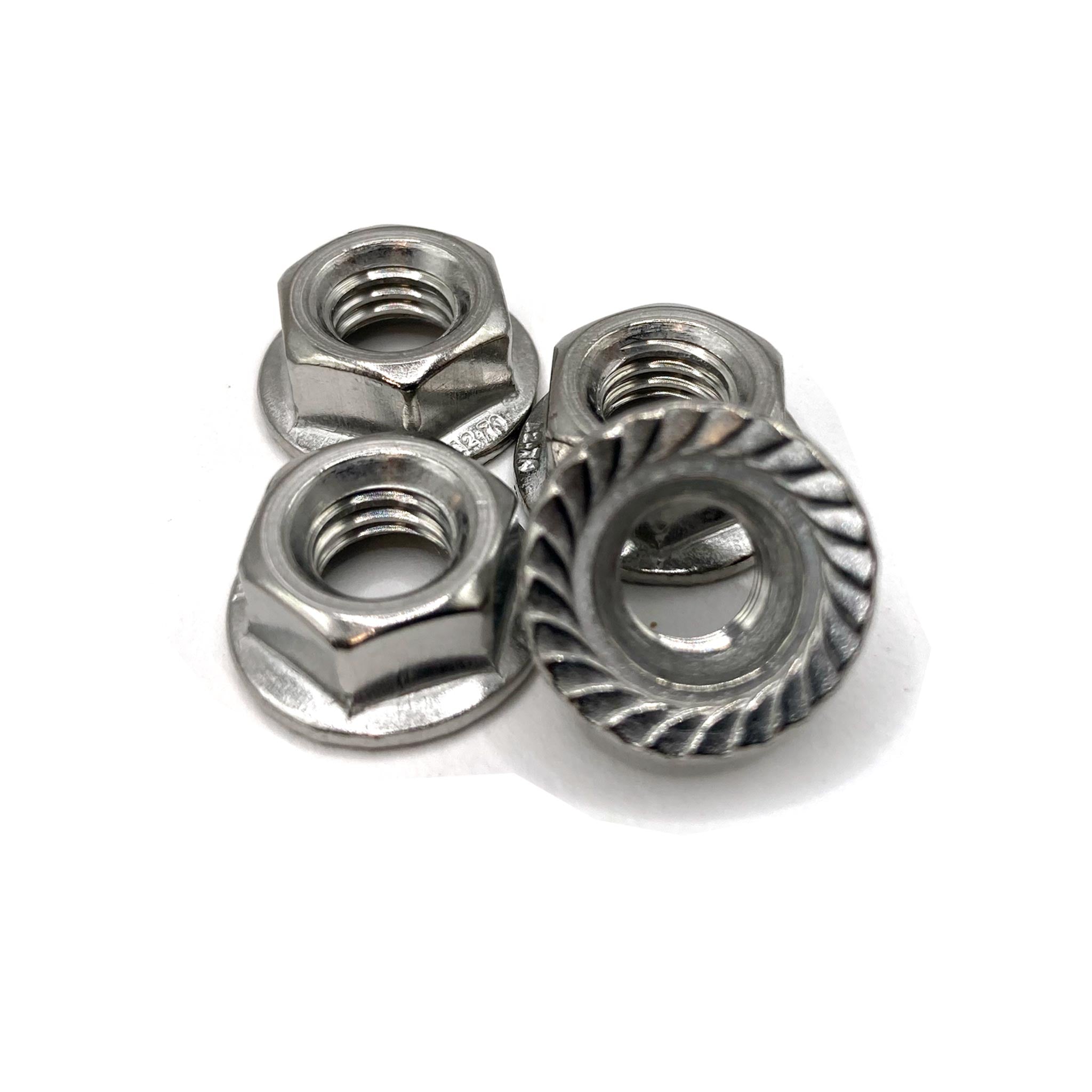

- M8 mounting nuts

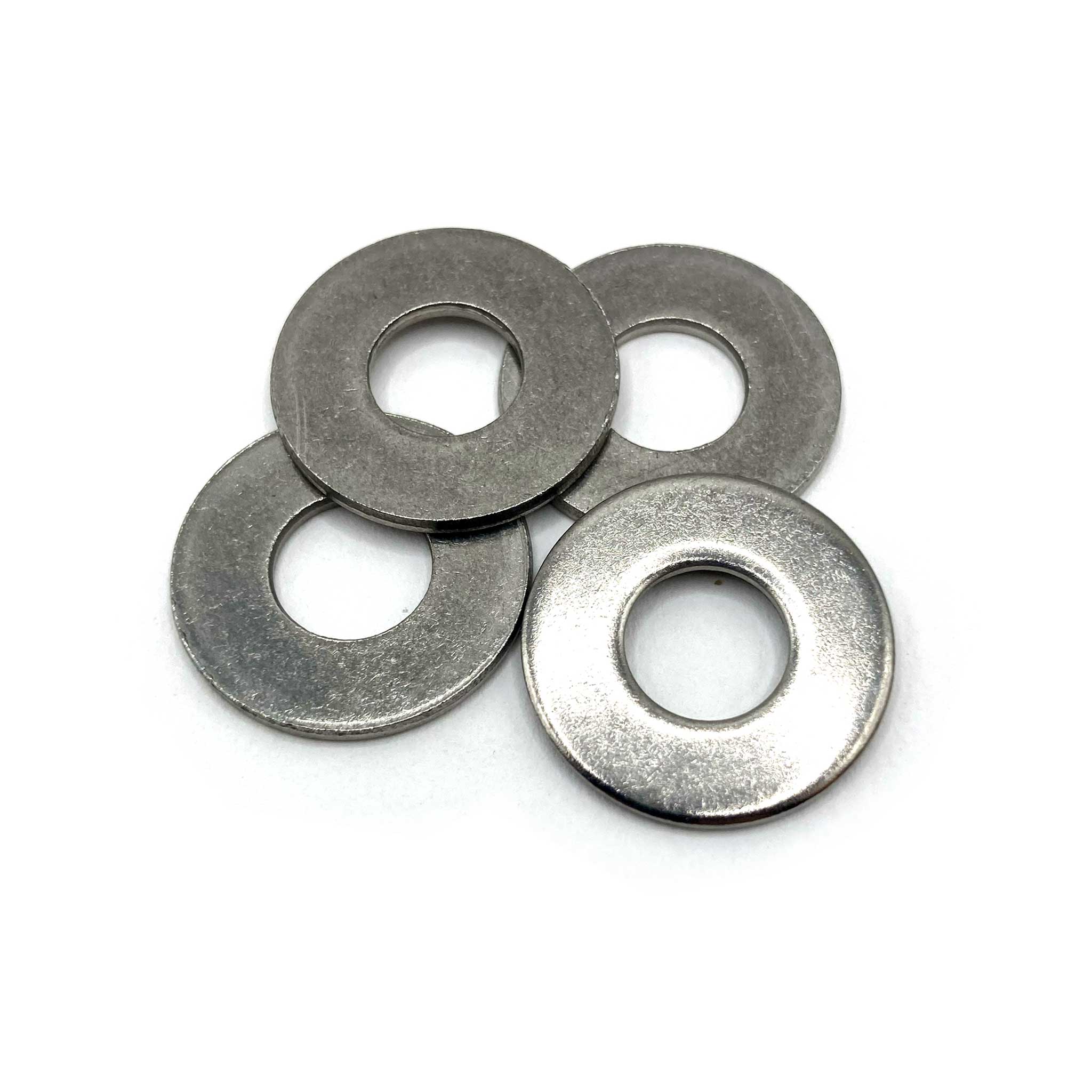

- M8 flat washers

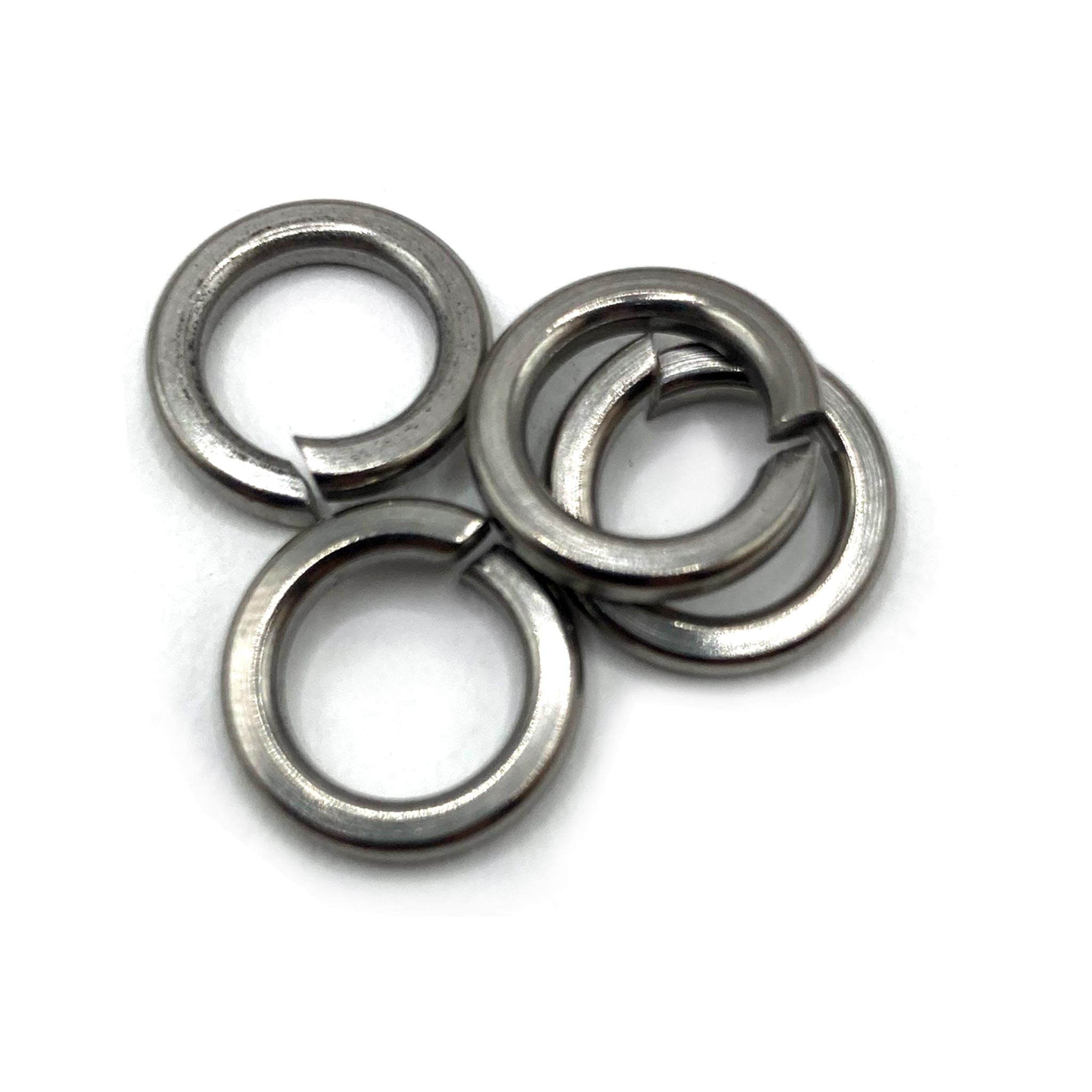

- M8 lock washers
- Remote control
- Leveling strip

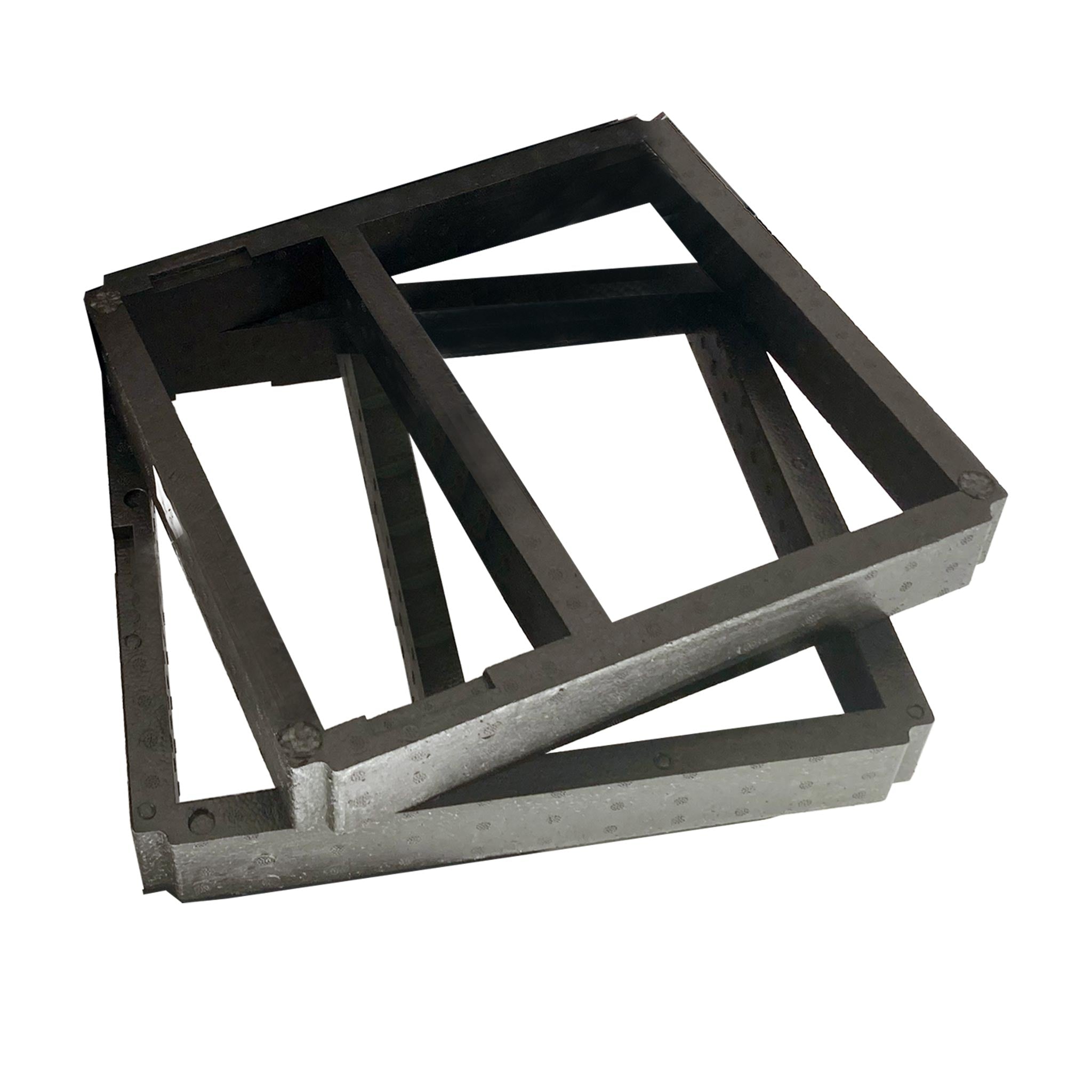

- Foam air separator
- Air separator screw

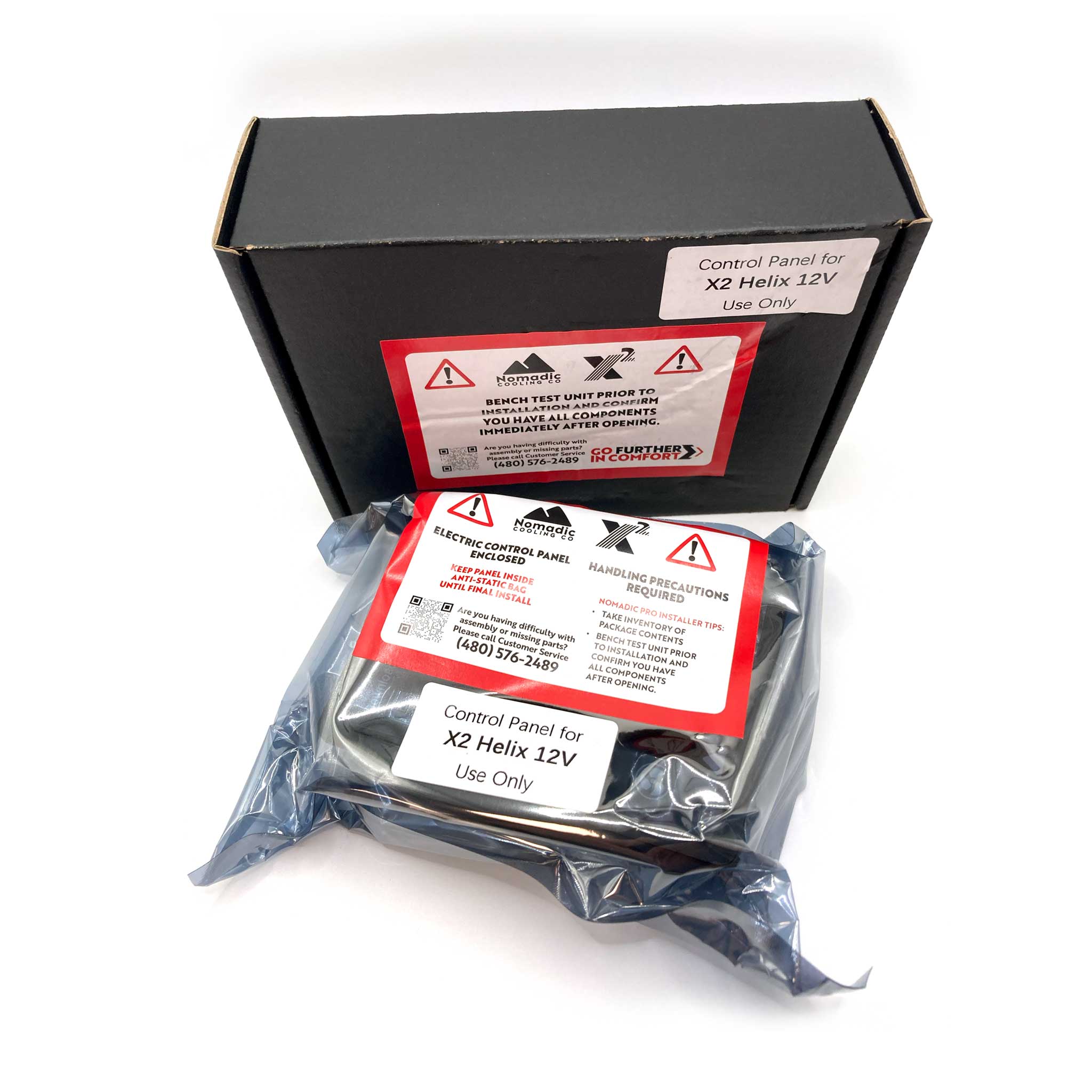

- Control panel & wire harness (boxed/bagged)
- Full-size 14×14 cutout template (1:1 scale)
Shipping & Warranty
- Shipping — AC unit: X2 Helix ships via LTL freight (curbside). Ships from Elkhart, Indiana.
- Shipping — Helix add-ons: Pulse, Eye, and other accessories ship parcel (UPS/USPS) with selectable methods at checkout and may arrive separately.
- Rates: Standard shipping rate shown at checkout.
- Freight tip: Inspect the shipment upon delivery and note any visible damage with the carrier before signing.
- Warranty: 1-year limited warranty with US-based tech support.
- Policies: See our detailed Shipping, Returns & Order Policy.
X2 Helix Compact 12V/48V DC RV & Van Rooftop Air Conditioner (Helix-Ready)
Meet The Helix Ecosystem

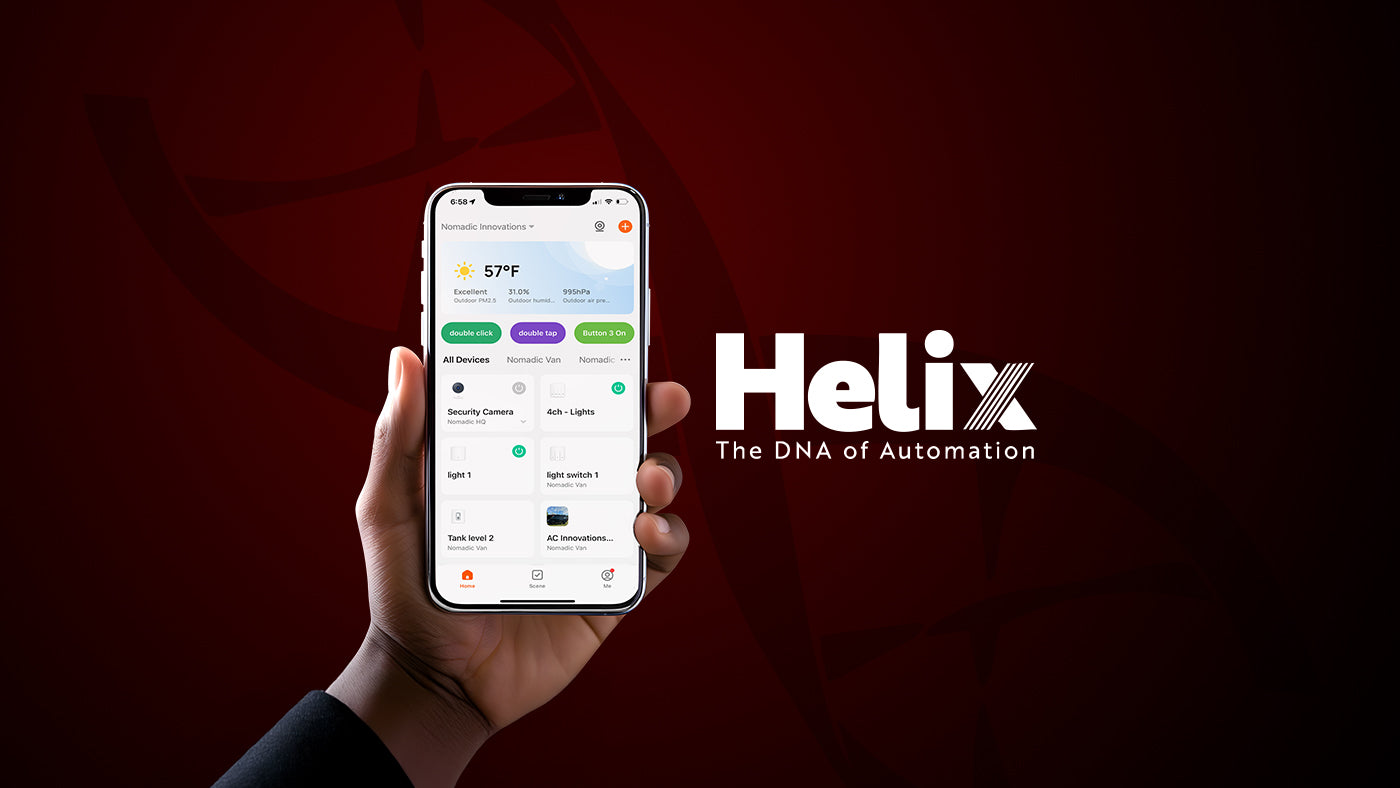

Helix ties your X2 Helix into a single, smart cabin—one app to manage climate, lighting, awning, sensors, and tank levels from phone, tablet, or watch. Build day, night, and away scenes, pre-cool before you return, check on pets, and let automations hold comfort while you’re off-grid.
The Helix Ecosystem
One app. Builder-grade reliability.
Control climate, lighting, awning, sensors, and camera check-ins—Helix runs scenes and schedules with true remote access on your phone, tablet, or watch.
Control
Scenes, Not Just Settings

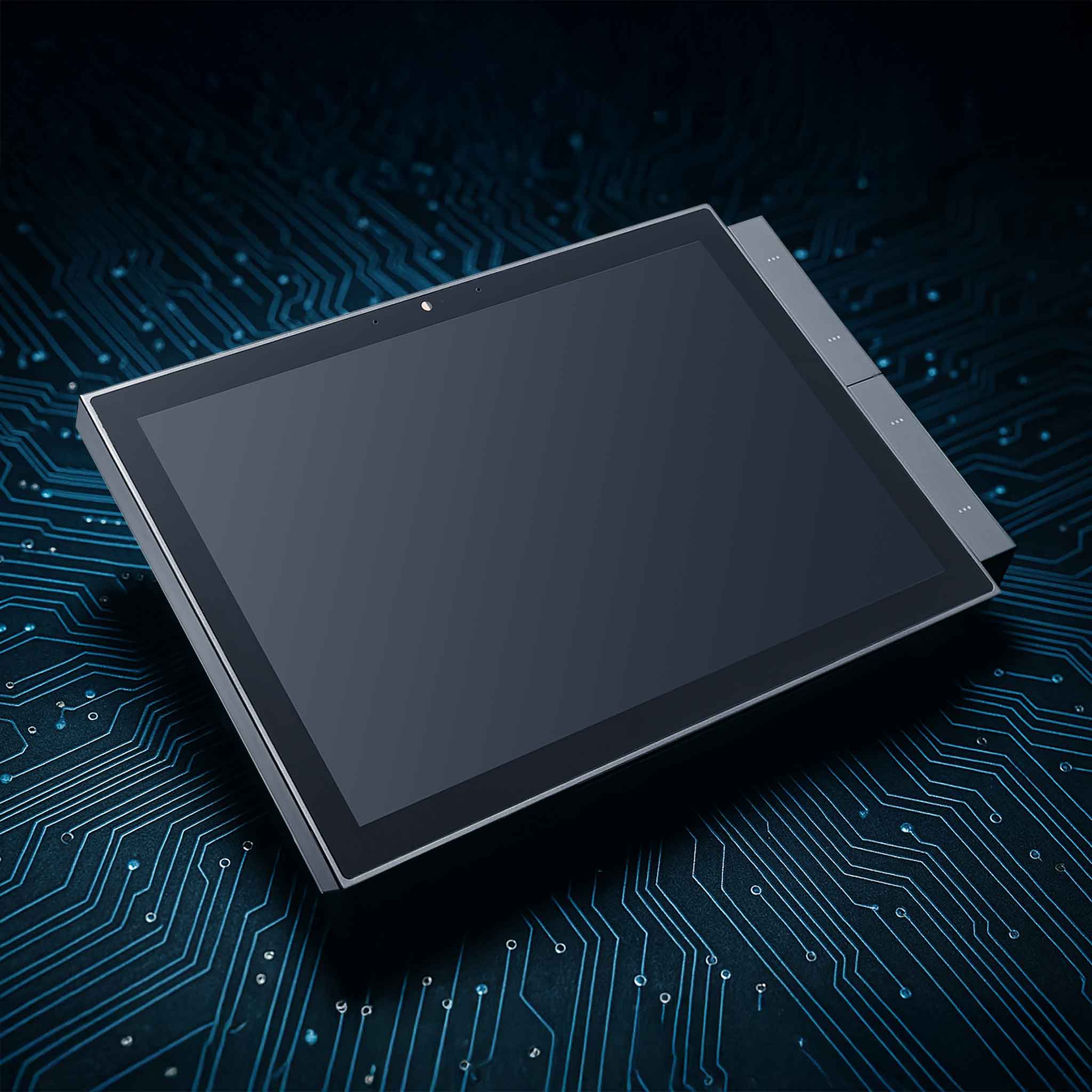

Helix Pulse centralizes X2 Helix control—set schedules, pre-cool before you arrive, and adjust from anywhere on your phone, tablet, or watch.
Visual Check-In
See Your Cabin, Anywhere
Helix Eye gives instant peace of mind—confirm temps, check on pets, and auto-record when motion or set thresholds trip. Get alerts and quick clips on your phone, tablet, or watch.
Proactive Alerts
Alerts Before It’s Urgent

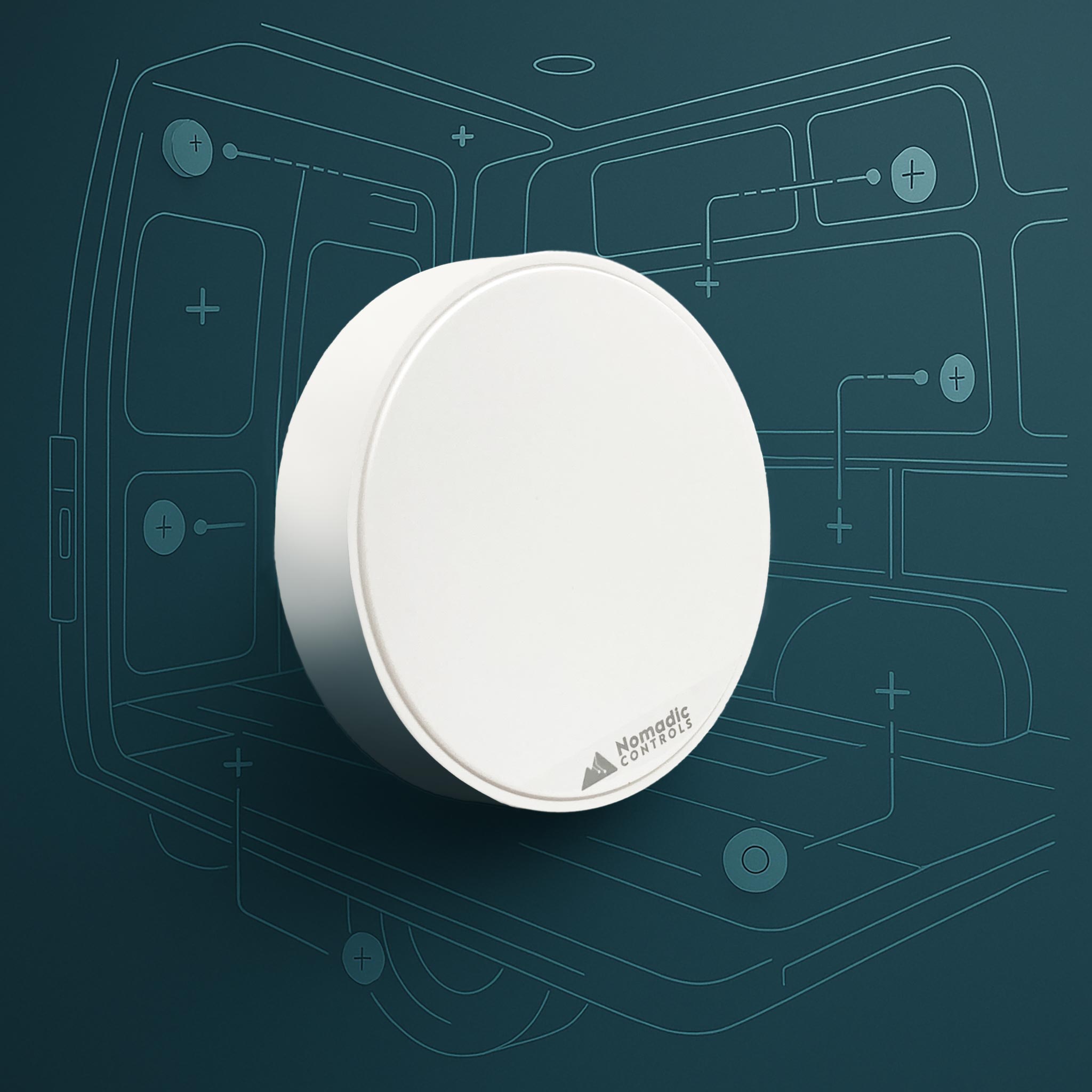

Helix Signal watches critical points—start with water-leak detection, add more sensors as you grow, and trigger Helix scenes and schedules to shut off, notify, or light the way.
X2 Helix
Details, Specs & Downloads
Start Here
X2 Helix is the compact member of our X-Series — built for crews who want steady comfort, real remote control, and more roof room for solar without committing to an oversized battery bank. An efficient PWM compressor modulates instead of hard cycling, so your 12V RV air conditioner (or 48V) holds temperature smoothly with less draw. Pair it with Helix to add scenes, schedules, and true remote access on phone, tablet, or watch — pre-cool before you return and keep pets comfortable while you’re out.
- Even cooling: PWM-smooth modulation, less overshoot.
- Remote that reaches: Helix control from anywhere (not Bluetooth-bound).
- Compact footprint: frees roof space for solar and fits cleanly on racks.

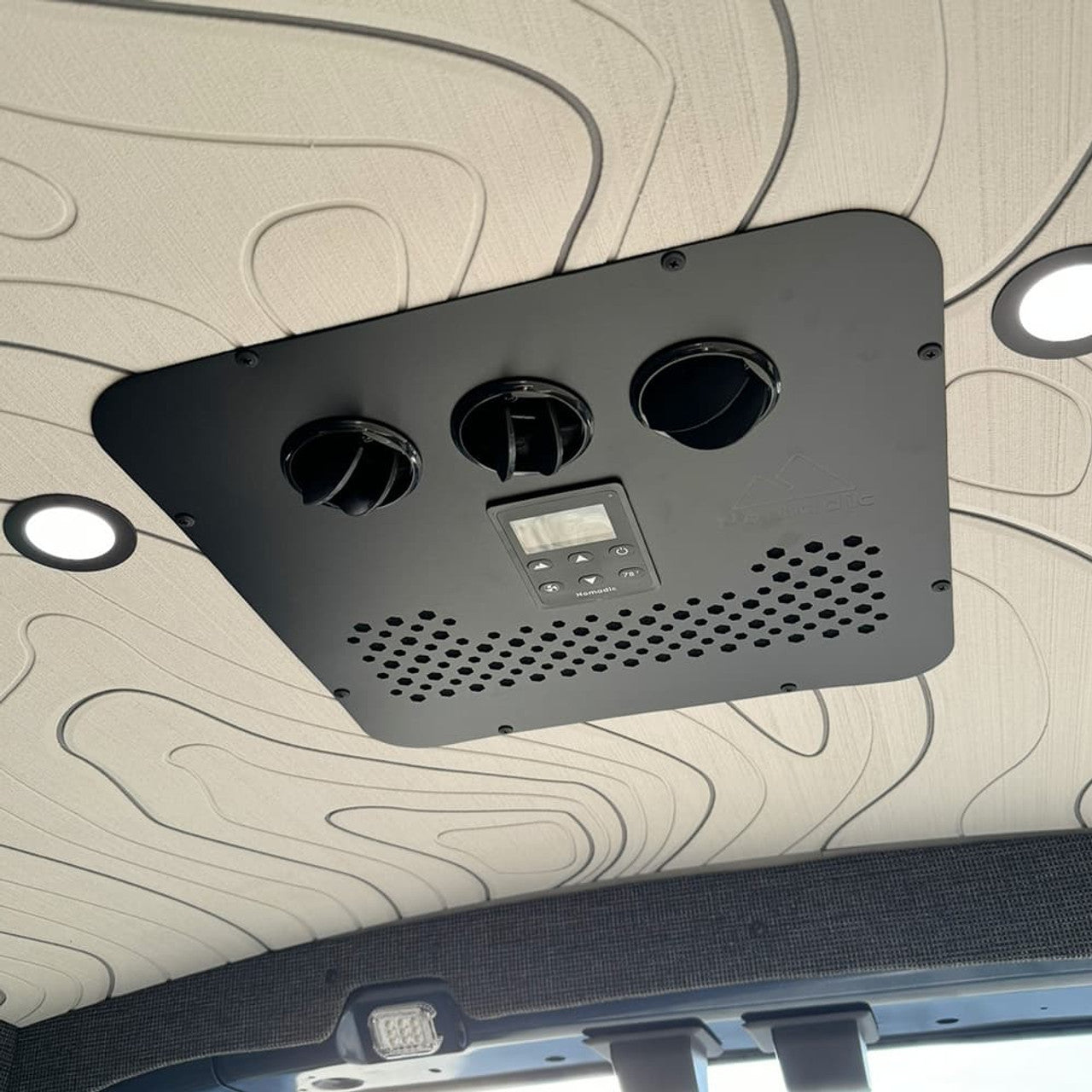

- Clean interior: flush, powder-coated metal faceplate (no bulky plastic box).
- Humidity control: High Humidity mode keeps cabins crisp after showers or coastal days.
- US-based support: Elkhart, Indiana — level-one techs and engineers.
- Options: 12V or 48V; Black or White.
Bottom line: If you want rock-steady comfort, real remote control, and a system that plays nicely with a modest 12V bank, X2 Helix delivers — compact, connected, and ready for the miles.
What is the X2 Helix?
X2 Helix is the compact DC rooftop member of our X-Series—built for steady comfort, true remote control, and smart automation without demanding an oversized battery bank. As a 12V RV air conditioner (also available in 48V), X2 uses efficient PWM modulation to maintain temperature smoothly while the Helix platform adds scenes, schedules, and control from your phone, tablet, or watch. The smaller footprint also leaves more roof room for solar—a win for off-grid builds.
Where X2 Helix shines
- Compact by design: frees roof real estate for panels and racks.
- Battery-friendly: pairs well with modest 12V lithium banks; 48V option for higher-capacity systems.
- PWM-smooth cooling: glides to set point and holds it without harsh on/off cycling.
- Helix control: create day/night/away scenes, run schedules, and adjust remotely from anywhere.
- High Humidity mode: targets moisture so the cabin feels crisp after showers or coastal days.
- Flush interior plate: powder-coated metal faceplate for a clean, low-profile look.
Built on proven X-Series fundamentals
- Stainless hardware: corrosion resistance for coast-to-coast travel.
- Spring-bushing compressor mounts: vibration damping for a quieter, smoother feel.
- Low-profile interior presence: preserves headroom and sightlines.

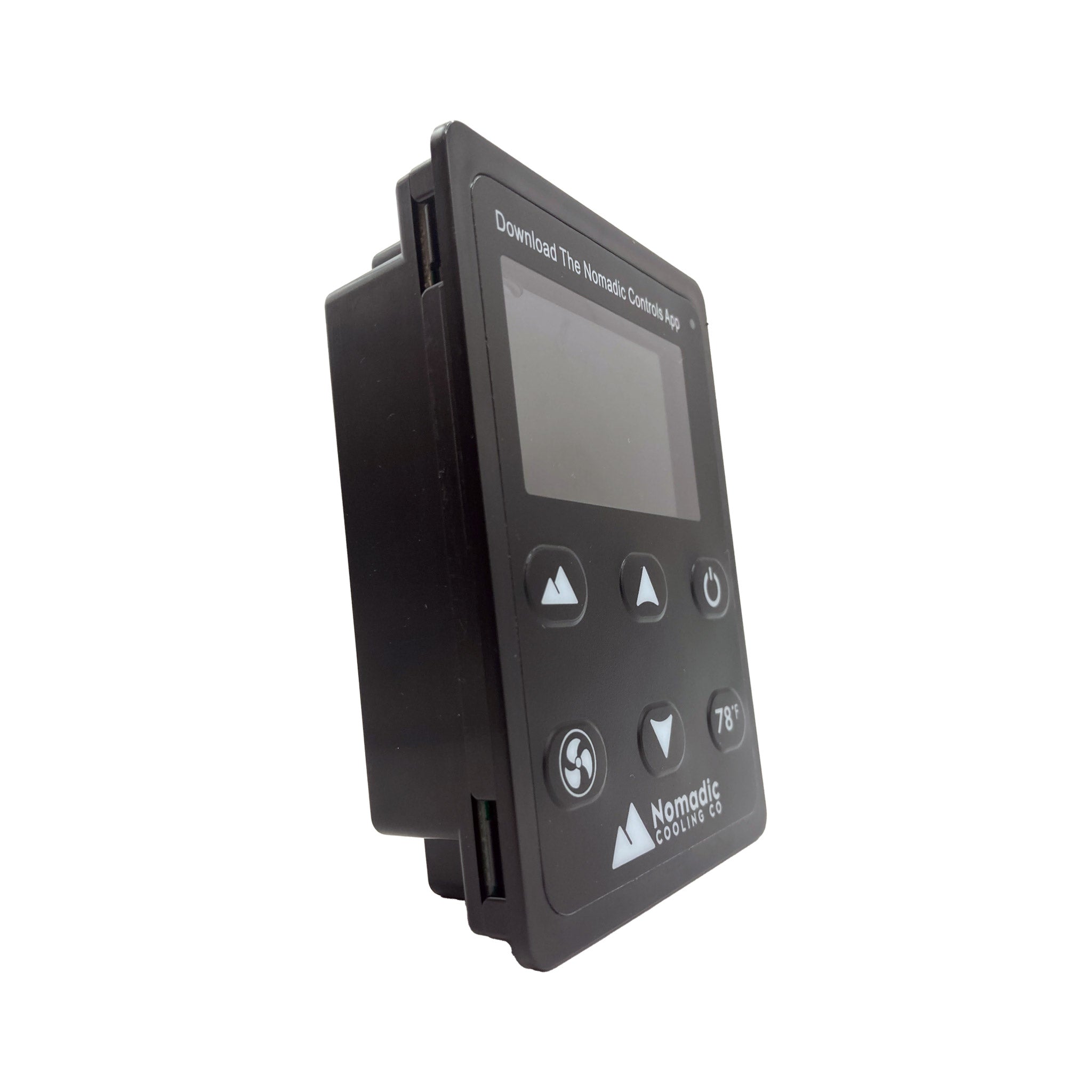

- Bright, high-contrast LCD + tactile buttons: clear readout and glove-friendly control at the unit.
- Fit & install: industry-standard 14×14 roof opening with a familiar X-Series install flow.
Options & support
- Voltages & finishes: 12V or 48V; Black or White.
- US-based support: Elkhart, Indiana—level-one techs and engineers.
Made by Nomadic Cooling (hardware) and Nomadic Controls (Helix) under Nomadic Innovations. Whether you search for Nomadic Cooling AC or Nomadic Innovations AC, you’re in the right ecosystem.
Why X2 Helix?
Because it delivers predictable comfort in a smaller footprint and plays nicely with real-world 12V systems. X2 Helix pairs PWM-smooth temperature control with Helix automation so you get steady air, remote access that reaches you, and a clean interior finish that holds up to the miles.
Comfort you don’t babysit
- Even hold at set point: PWM modulation avoids harsh on/off cycling.
- Quieter nights: run lower compressor RPMs with a “Quiet Night” scene in Helix.
- Humidity control: High Humidity mode clears moisture after showers or coastal days.
Control that reaches you
- Scenes & schedules: routines that match day, night, and away.
- True remote access: adjust and monitor from phone, tablet, or watch—pre-cool before you arrive and check on pets from the trail.
Built to be used
- Compact footprint: frees roof space for solar and racks.
- Clean interior: flush, powder-coated metal faceplate—no bulky plastic bezel.
- Road-worth hardware: corrosion-resistant stainless hardware & fasteners.
- Service-minded touches: sensible access points and tidy harness routing.
Fit, options & support
- Standard opening: installs in a familiar 14×14 roof cutout.
- Variants: 12V or 48V; Black or White.
- US-based help: real support from Elkhart, Indiana.
Choose X2 Helix if you want proven X-Series reliability, automation-ready control, and off-grid friendliness—without the compromises of Bluetooth-only gadgets or disposable, bargain hardware.
What You’ll Notice on Day One
Specs matter—but comfort is what you feel. Here’s what X2 Helix owners call out the first time they run it.
- Set-point stays steady: PWM modulation smooths the ramps and avoids the sawtooth on/off feel.
- Pre-cool that actually pays off: use Helix scenes/schedules to come back to a cabin that’s already comfortable.
- Quieter nights: lower compressor RPMs + a “Quiet Night” scene in Helix keep sound levels soft while you sleep.
- Cleaner interior look: the flush, powder-coated metal plate replaces a bulky plastic box and preserves headroom.
- Humidity drops: High Humidity mode clears sticky air quickly after showers or coastal days.
- Less battery anxiety: designed to pair well with modest 12V banks; 48V option available for larger systems.
- Easy peace of mind: check status from phone, tablet, or watch—add Helix Eye for quick pet/cabin check-ins.
- Built to travel: corrosion-resistant stainless exterior hardware inspires confidence on the road.
Result: even cooling, quieter nights, simpler routines, and control that follows you—without standing next to the unit.
Specs
Until verification is complete, the figures below are provisional estimates derived from our X-Series comparison data; final certified numbers will be posted after testing.
Model & Fit
- Model: X2 Helix
- Voltages: 12V DC or 48V DC
- Type: DC rooftop air conditioner
- Roof opening: industry-standard 14×14 in
- Finishes: Black or White
- Footprint: compact exterior to preserve roof space for solar/racks
Estimated Performance (averages across 70–100+°F)
Why these numbers matter: We publish averages across 70–100+°F, not a single “best-case” spike. That makes comparisons fair and closer to real use. Final certified figures will replace these estimates after verification.
- Full AC — 12V: ~8,395 BTU/hr • COP ~3.0 • ~814.5W • ~55.2A
- Full AC — 48V: ~9,484 BTU/hr • COP ~3.05 • ~911 W • ~17.91 A
- ECO — 12V: ~5,702 BTU/hr • COP ~3.3 • ~511.4 W • ~34.6 A
- ECO — 48V: ~5,834 BTU/hr • COP ~3.7 • ~441 W • ~8.87 A
Components & Control
- Compressor control: PWM modulation for smooth ramps and steady hold
- Humidity mode: High Humidity (fast moisture pull-down)
- Refrigerant: R1234yf (low-GWP, A2L) — final charge posted after lab verification
- Ecosystem control: Helix scenes, schedules, and remote access on phone, tablet, and watch
- Interior plate: flush, powder-coated metal (clean look, preserves headroom)
- Hardware: corrosion-resistant stainless fasteners
Dimensions & Weight
- Overall length: 28.0 in
- Overall width: 22.5 in
- Overall height (above roof): 6.9 in
- Roof opening (cutout): 14 × 14 in (industry standard)
- Crossbar span (center-to-center): 13.5 in
- Placement tolerance: allow 1/8–1/4 in variance during install
- Finish options: Black or White
- Weight: 44lbs.
Provisional results reflect averaged bins in the X-Series comparison and are useful for planning; final certified performance will be posted following testing.
Install, Fit & Downloads
X2 Helix drops into the industry-standard 14×14 in roof opening and follows a familiar X-Series install flow. Use the quick notes below; digital guides will be posted as they’re released.
Fit & options
- Roof opening: industry-standard 14×14 in
- Interior presence: low-profile, flush powder-coated metal faceplate
- Voltage options: 12V DC or 48V DC
- Finish options: Black or White
- Footprint: compact exterior to leave more roof room for solar/racks
What’s included for install
- Foam gasket (14×14) and leveling strip
- Crossbars with mounting hardware (bolts, nuts, washers, lock washers)
- Flush-mount metal interior faceplate with screws
- Foam air separator with screw
- Control panel & wire harness (boxed/bagged)
- Full-size 14×14 cutout template (1:1 scale)
Basic install sequence
- Prep & dry-fit: confirm/cut 14×14; verify clearance using the included 1:1 template.
- Gasket & placement: seat the gasket, position the unit, confirm level.
- Secure: install crossbars and hardware; tighten evenly in a criss-cross pattern.
- Interior assembly: install the air separator and faceplate.
- Electrical: connect DC (12V/48V), route harness, verify fuse access.
- Commission: power on, verify airflow and temperature hold.
Pro tips
- Dry-fit everything before sealing; pre-plan wire routing and strain relief.
- Evenly compress the gasket—snug, not over-torqued.
- Keep supply/return paths clear for best modulation performance.
- Create a Quiet Night scene in Helix to hold comfort at lower compressor RPMs while you sleep.
Downloads
- X2 Helix Install Guide (PDF) — 14×14 opening, gasket/crossbars, wiring, commissioning. (coming soon)
- X2 Helix Troubleshooting Guide (PDF) — startup checks, airflow verification, control basics, error states. (coming soon)
- Wiring Diagram — 12V (PDF) & 48V (PDF) — fuse sizing, isolation notes, harness routing. (coming soon)
- Cutout Template 14×14 (PDF) — full-scale 1:1 (printed in box). (digital copy coming soon)
- Control Panel Pinout (PDF) — connector map and fuse locations. (coming soon)
- Shipping, Returns & Order Policy
Value & Pricing
X2 Helix is priced for long-term ownership, not disposability. You’re paying for predictable comfort, real remote control, and a platform that’s built to be maintained—not replaced.
- Steady comfort: PWM-smooth modulation holds temperature without harsh on/off cycling, reducing battery stress.
- Remote that reaches: Helix scenes, schedules, and access from phone, tablet, or watch—beyond Bluetooth range.
- Compact, off-grid friendly: smaller footprint leaves more roof room for solar and pairs well with modest 12V banks (48V option available).
- Real cabin finish: flush, powder-coated metal interior plate—clean look, no bulky plastic box.
- Moisture management: High Humidity mode targets sticky air so the cabin feels crisp after showers or coastal days.
- Built for miles: corrosion-resistant stainless hardware and sensible service access.
- Support you can reach: US-based technical team in Elkhart, Indiana.
Total cost of ownership: steadier comfort, fewer headaches, and a connected platform that grows with your rig—at a price that reflects durability and support, not short-term savings.
Helix Ecosystem
The Helix Era has arrived
One app. Builder-grade hardware. Helix ties climate, camera, sensors, tank levels, lighting and awning control into scenes and schedules so your rig stays comfortable, informed and ready, even off-grid. Set day, night and away routines to pre-cool, hold a quiet low-RPM night, switch lights on and off, extend or retract the awning with weather-aware rules, and alert on leaks or temperature spikes. You arrive to perfect; Helix handled the rest.
Why Nomadic Cooling
Real support, fast fulfillment, and gear built to survive real miles.
US-Based Tech Support
Elkhart, Indiana. Level-one techs and engineers who know off-grid builds. Real answers, not scripts.
Fast, Builder-Grade Fulfillment
Ships from the RV capital. In-stock units move quickly; parts and docs are easy to access.
Designed for the Miles
Built to be maintained. Stainless hardware, protected electronics, and service-minded details.
Does X2 Helix Beat the Alternatives
Steady Temps
Holds the set point: without the roller-coaster
X2 Helix uses efficient PWM modulation with improved control logic to glide to temperature and hold it with less battery stress. Many budget units hard-cycle on/off, overshoot, and feel noisy even when the numbers look similar.
Beyond Bluetooth
Control that follows you, not the other way around
Set scenes and schedules and adjust climate from phone, tablet, or watch—pre-cool before you arrive and check on pets from anywhere. Bluetooth-only systems stop at the door; Helix gives true remote access.
Flush Interior
Clean cabin look; no bulky plastic box
The powder-coated metal faceplate sits low and flush, preserving headroom and elevating the interior. Many alternatives protrude inches into the cabin with plastic bezels that look and feel cheap.
Sealed Electronics
Protected where it matters, service-minded by design
A sealed back plate shields control electronics from dust and debris, and automotive-grade, water-resistant connectors beat messy sealants. Logical access points and clean harness routing make maintenance straightforward on the road.
Beat Humidity
Sticky air? Handled
High Humidity mode increases moisture removal after showers or coastal drives so the cabin feels crisp, not damp. Most systems treat humidity as an afterthought
Built to Last
Stainless hardware that resists salt and seasons
Hardware & fasteners are stainless by design to handle coastal air and winter roads. That keeps mounts solid and finishes clean after miles, where budget hardware can rust and loosen.
US Support
Real help, from Elkhart, Indiana
Talk to level-one techs and engineers who know off-grid builds and the X-Series install flow. When you’re on the road, you need answers—not scripts, emails, or unit replacements by default.
Future-Ready
Modern refrigerant, chosen for longevity
With R1234yf, X2 Helix pairs low global warming potential with low-flammability classification and prudent charge sizing—avoiding the hydrocarbon shortcuts found in many budget units. A smarter path as regulations tighten.
FAQs
How is the X2 Helix different from the X2 Plus and the X3 Helix?
X2 Helix keeps the compact X-Series footprint but upgrades the X2 Plus with Helix automation (scenes, schedules, true remote), improved control logic, a sealed back plate, automotive-grade water-resistant connectors, a refined plenum/air separator, and R1234yf refrigerant—while still using PWM for smooth, steady cooling. X2 Plus shares much of the core hardware and PWM approach, but lacks Helix integration and the newer control/sealing updates. Versus X3 Helix, the X2 Helix is smaller and lighter, pairs well with a more modest battery bank, and suits tighter builds; X3 is the larger flagship for rigs that want the bigger footprint and capacity envelope.
Will it fit my build and what does installation involve?

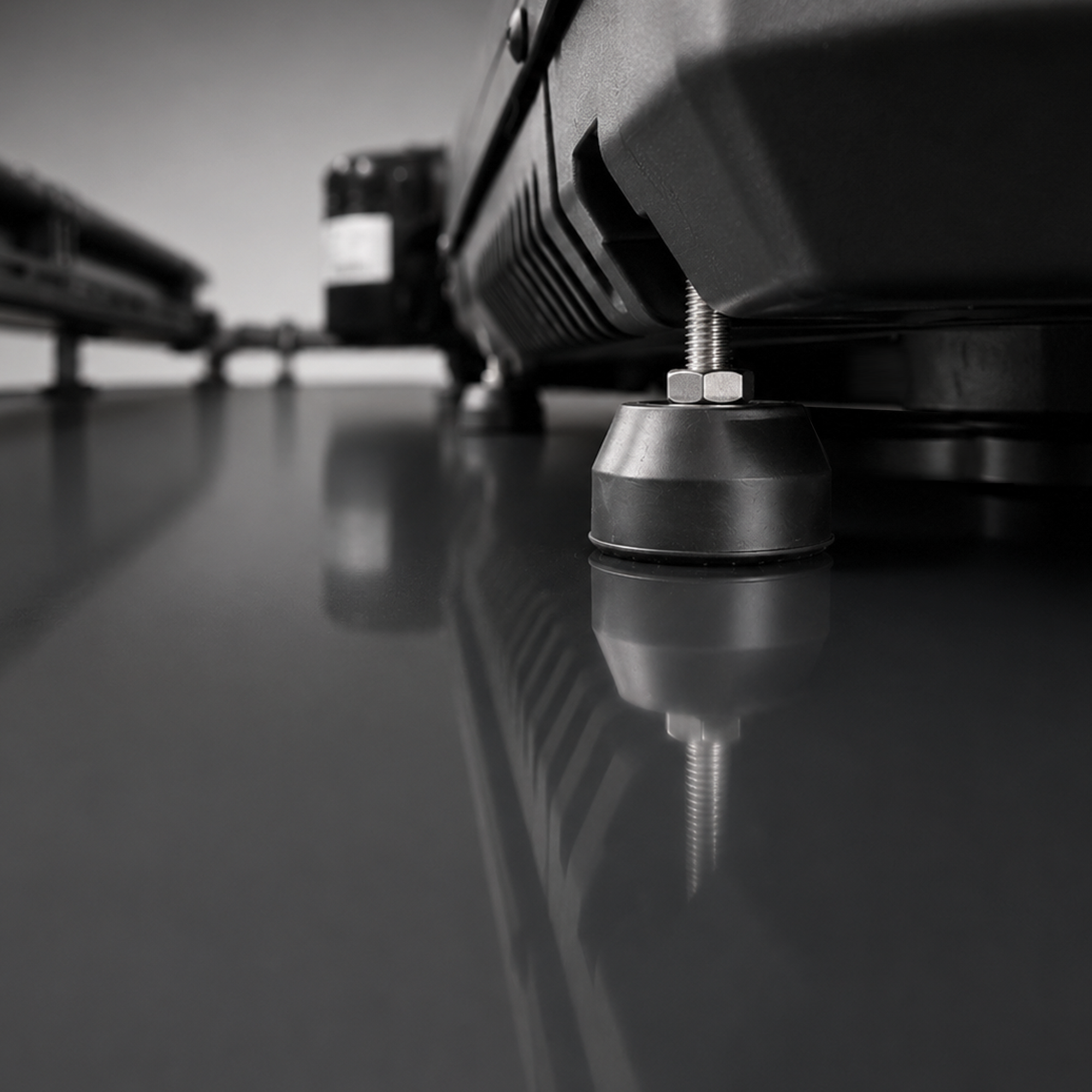

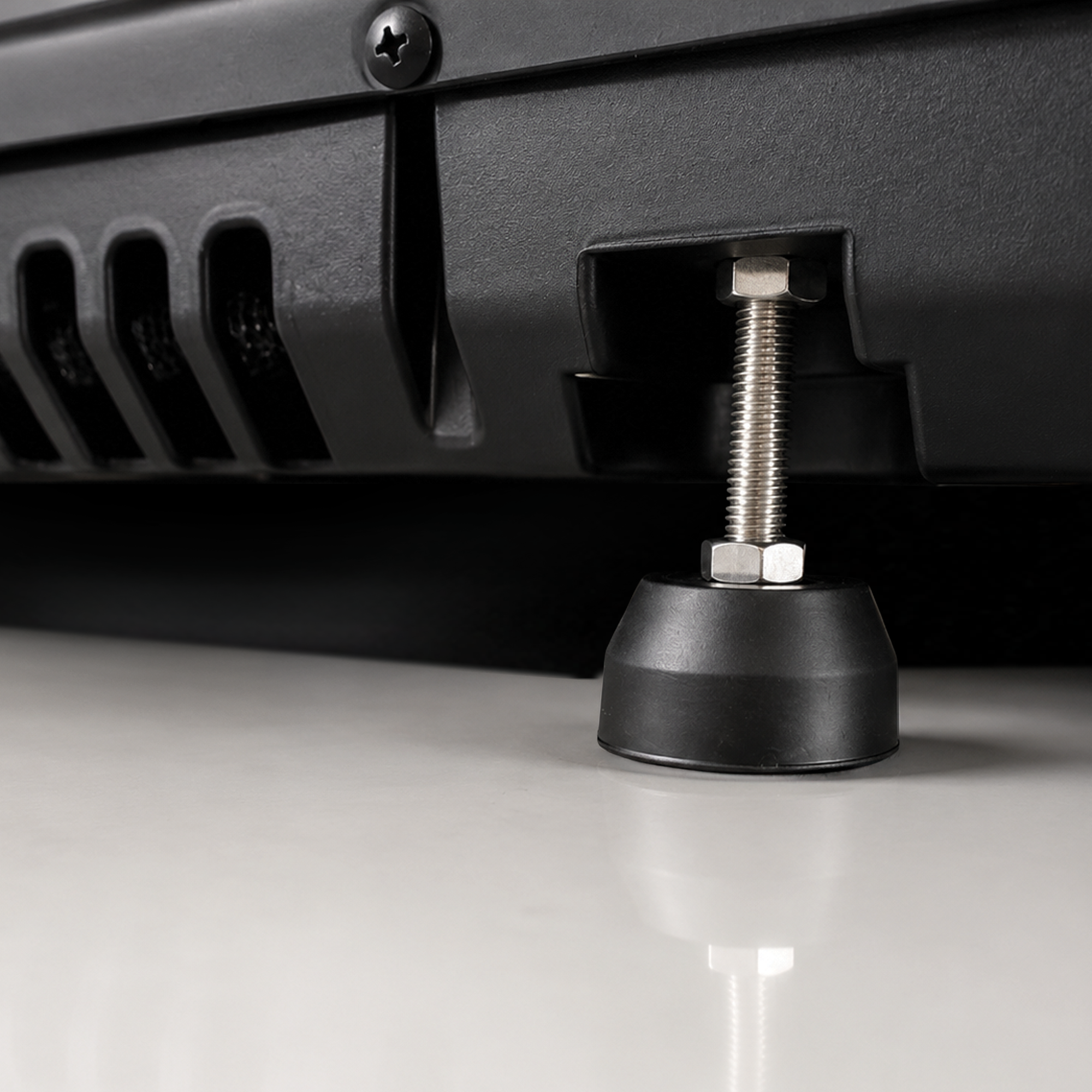

Yes—X2 Helix drops into the industry-standard 14×14 roof opening and follows the familiar X-Series process: dry-fit with the template, seat the gasket, set the unit level, secure crossbars/fasteners in a criss-cross pattern, wire DC (12V or 48V), and commission. The compact footprint helps preserve roof space for solar/racks. Choose Black or White. Step-by-step guides and wiring diagrams are in Install, Fit & Downloads.
How quiet and stable is the X2 Helix at night?
PWM modulation glides to the set point and holds it with fewer start/stop spikes, which softens perceived sound. Create a Quiet Night scene in Helix to maintain comfort at lower compressor RPMs, and dim or turn off the control-panel light for a dark cabin.
How do I maximize runtime off-grid (battery life and comfort)?
Pre-cool the cabin, use reflective window covers and shade (awning), keep airflow paths clear, and set a realistic target temp. In Helix, create a “Quiet Night” scene to hold comfort at lower compressor RPMs and use High Humidity mode after showers or coastal drives.
What maintenance and support should I expect over time?
X2 Helix is service-minded: protected electronics, clean harness routing, and sensible access. Periodically inspect gasket compression and connections; consult the Install/Troubleshooting guides. If you need help, our US-based team in Elkhart, Indiana, supports you, and warranty coverage is 1 year.
What people
are saying
Michael GustafsonI am writing to express my sincere appreciation for the great customer service we consistently receive from Nomadic Innovations.
Prime MoverI had a small issue when installing my AC. I contacted support and had prompt response within 24 hours. Ongoing email support from Eric B. was awesome as well and my issue was resolved successfully. Great company and great products.
Michael WilliamsHe spent well over an hour on the phone with us and again the next day. He followed up and was immediately responsive to calls and emails. Overall 5-star tech support!
Lee WaldmanAs a dealer for Nomadic Cooling’s air conditioning units and awnings, I’ve always appreciated the quality of their products—but this experience reinforced just how good their customer service is.
Rebecca RathbunI’m not really knowledgeable about this type of stuff and he was patient and answered all my questions. In the past I’ve dealt with the owner too who was amazing when I stopped at their new facility for a visit last summer.
Make it Helix Smart
Unlock true remote control and automation with Helix Pulse—build scenes and schedules, pre-cool before you arrive, and set a Quiet Night routine from your phone, tablet, or watch. Add Helix Eye for quick pet/cabin check-ins and motion/threshold alerts. Two essentials, one bundle.
