X2 & X3 Series Upgraded 3-Vent Faceplate Assembly
X2 & X3 Series Upgraded 3-Vent Faceplate Assembly
X2 & X3 Series Upgraded 3-Vent Faceplate Assembly
X2 & X3 Series Upgraded 3-Vent Faceplate Assembly

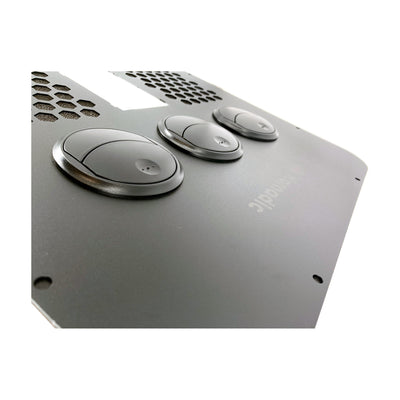

Close-up of the X2 Helix Gen II flush metal interior faceplate showing the perforated airflow grille, rounded edge, and adjustable air vents.
X2 & X3 Series Upgraded 3-Vent Faceplate Assembly

Vendor:Nomadic Cooling

X2 & X3 Series Upgraded 3-Vent Faceplate Assembly

A/C Series
A/C Series: X2 Series

Pickup available at HQ 4-Elkhart, IN

Usually ready in 2-4 days

Pairs well with

Product Details

X2 & X3 Series Upgraded 3-Vent Faceplate Assembly

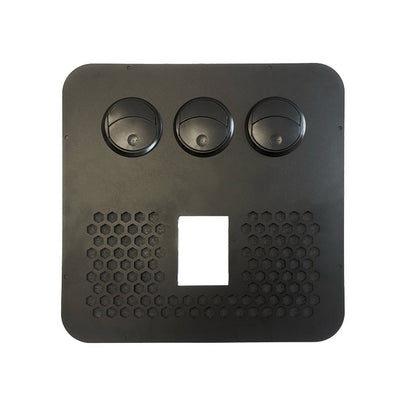

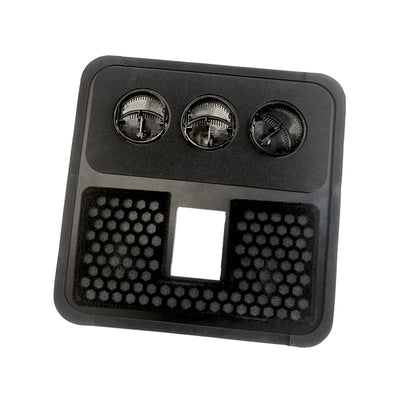

Replace or upgrade the interior faceplate on your compatible Nomadic Cooling X2 Series or X3 Series rooftop air conditioner with the current upgraded 3-vent faceplate assembly.

Select your A/C series before ordering: This product is available in dedicated X2 Series and X3 Series configurations. Choose the series that matches your Nomadic Cooling rooftop A/C from the product options above.

The upgraded assembly features the current 3-vent faceplate design in Obsidian Black and comes with all three air vents already preinstalled for a clean, complete replacement.

Please note: Installation screws and fasteners are not included with the faceplate assembly.

Do you need the complete faceplate or only a replacement vent? If your faceplate itself is still in good condition, measure the visible outside diameter of your current vent before ordering. Measure across the round face of the vent that is visible from inside the vehicle. Do not measure the clips, tabs, or backside of the vent.

  • Approximately 3.5" visible vent diameter: If the faceplate itself is still in good condition and you only need to replace a damaged vent, you may only need an individual replacement vent.
  • Approximately 2.88" / 2-7/8" visible vent diameter: The newer individual replacement vent will not fit this smaller vent configuration. The upgraded faceplate assembly is required.

Need only an individual vent? Visit our X Series Faceplate Vent Replacement Options page to select the correct replacement part.

Before adding to cart, verify your A/C series, select X2 Series or X3 Series, and measure your existing vent if you are unsure whether you need the complete faceplate assembly or only a replacement vent.

Faceplate Features & Compatibility

  • X2 Series & X3 Series Options: Available in dedicated configurations for compatible Nomadic Cooling X2 Series and X3 Series rooftop air conditioners.
  • Upgraded 3-Vent Design: Features the current Nomadic Cooling 3-vent interior faceplate configuration.
  • Three Vents Included & Preinstalled: The complete faceplate assembly comes with all three air vents already installed. Separate vents do not need to be purchased when ordering the full assembly.
  • Screws Not Included: Installation screws and fasteners are not included with the faceplate assembly.
  • Replacement for Smaller Vent Configurations: If your existing vent measures approximately 2.88" / 2-7/8" across the visible face, the newer individual replacement vent will not fit. The upgraded faceplate assembly is the correct replacement path.
  • Replacement Vents Available Separately: If your existing vent measures approximately 3.5" across the visible face and the faceplate itself is still in good condition, an individual replacement vent may be all you need.
  • Obsidian Black Finish: Provides a clean, premium interior appearance designed to complement modern van and RV interiors.
  • OEM Nomadic Cooling Component: Designed specifically for compatible Nomadic Cooling X Series rooftop A/C applications.

Important: X2 Series and X3 Series faceplates use separate part numbers. Select the correct A/C series before ordering.

Looking for an individual vent instead? View X Series Faceplate Vent Replacement Options.

Frequently Asked Questions

Q: Does this faceplate work with both X2 Series and X3 Series air conditioners?
A: This product is available for both product families, but the X2 Series and X3 Series use separate faceplate configurations. Select the A/C series that matches your unit before adding the product to cart.

Q: Why does the product selector say X2 Series and X3 Series instead of only X2 and X3?
A: Nomadic Cooling has produced multiple models and generations within the X2 and X3 product families. The faceplate options are organized by A/C series to make selecting the appropriate product family easier.

Q: How do I choose the correct faceplate?
A: First verify whether your Nomadic Cooling rooftop air conditioner belongs to the X2 Series or X3 Series, then select the corresponding option above. If you are deciding between replacing the complete faceplate or only an individual vent, measure the visible outside diameter of your current vent.

Q: Does the faceplate come with vents installed?
A: Yes. The upgraded faceplate assembly comes with three air vents already preinstalled. You do not need to purchase separate vents when ordering the complete assembly.

Q: Are installation screws included?
A: No. Installation screws and fasteners are not included with the faceplate assembly.

Q: Should I purchase the complete faceplate or only a replacement vent?
A: Measure the visible outside diameter of your current vent. If it measures approximately 3.5 inches and your faceplate is still in good condition, you may only need an individual replacement vent. If the vent measures approximately 2.88 inches / 2-7/8 inches, the newer replacement vent will not fit and the upgraded faceplate assembly is required.

Q: Where exactly should I measure the vent?
A: Measure from edge to edge across the front, visible round face of the vent as viewed from inside the vehicle. Do not measure the clips, tabs, or backside of the vent.

Q: Should I determine compatibility by counting the number of vents?
A: No. Measuring the visible outside diameter of the existing vent is the more reliable method because different faceplate and vent configurations have existed over time.

Q: What if my existing vent measures approximately 3.5 inches?
A: If the faceplate itself is still in good condition and you only need to replace a damaged vent, you can purchase an individual 3.5" replacement vent here. Replacement vents are sold individually, so select the quantity you need.

Q: What if my existing vent measures approximately 2.88 inches or 2-7/8 inches?
A: The newer individual replacement vent is not designed to fit the smaller 2.88" vent configuration. In this case, choose the upgraded faceplate assembly and select the appropriate X2 Series or X3 Series option above.

Q: What color is the faceplate?
A: The upgraded faceplate assembly is finished in Obsidian Black.

Q: Is this compatible with every Nomadic Cooling air conditioner?
A: No. This product is intended for compatible Nomadic Cooling X2 Series and X3 Series rooftop A/C systems. Verify your A/C series before ordering.

Ordering reminder: Verify your A/C series first. If you only need a vent, measure the visible vent face — approximately 3.5" = individual replacement vent available; approximately 2.88" / 2-7/8" = upgraded faceplate assembly required.
